HEESEMANN LSM 8 Wide Belt Top Sanders

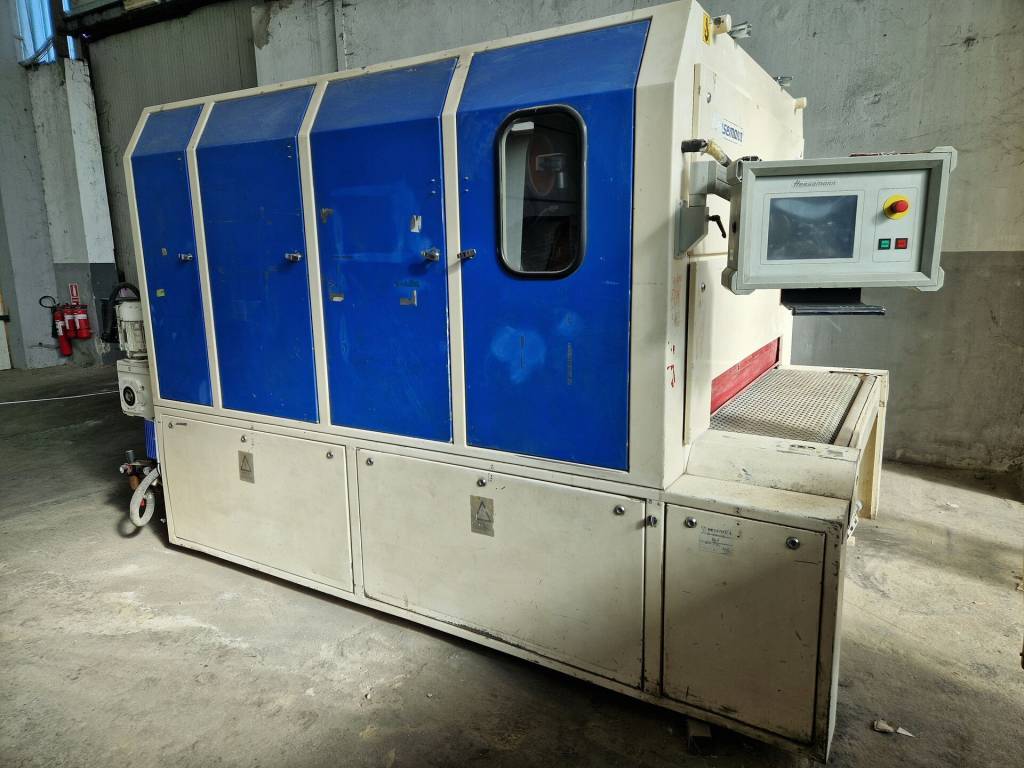

HEESEMANN LSM 8 Wide Belt Sander, used, serial number: 200202181

Technical specifications

sanding width 1300 mm

workpiece thickness from 3 mm up to 80 mm

vacuum transport belt; vacuum unit power 7,5 KW

belt conveyor with variable feed speed: 5-25 m/min, feed motor power 3 KW

aggregate 1: transversal sanding belt driven by an electronic sectioned pad, sanding belt dimensions 5.400 x 150 mm, motor power 13 KW variable sanding belt speed: max 12-24 m/sec

aggregate 2: longitudinal sanding belt driven by an electronic sectioned pad,, sanding belt dimensions 1350 x 2.620 mm, motor power 16,5 KW variable sanding belt speed: 10-20 m/sec

aggregate 3: Longitudinal sanding belt driven by an electronic sectioned pad,

sanding belt dimensions 1350 x 2.620 mm, motor power 16,5 KW variable sanding belt speed: 10-20 m/sec

aggregate 4: brush cleaning

Technical attributes

serial number 200202181

total electrical load 110 kW

Sanding belt speed 5-25 m/min

hollow height 3-80 mm

grinding band dimension 1300 mm

control Heesemann

Approx. Onsite Dimension. (l x w x h) 3850x2300x2500 mm

weight approx. 9200 kg

year of construction 2002

Delivery terms  FCA  545500 Sovata, Romania, loaded on truck
