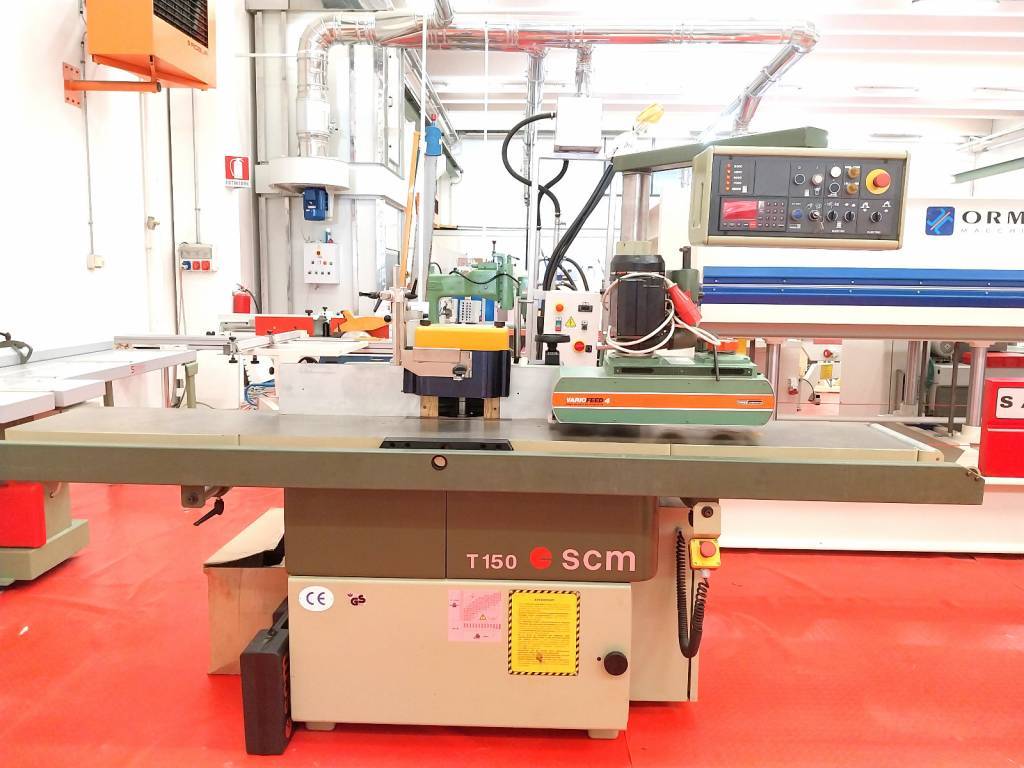

Automatic spindle moulder with tilting spindle SCM 150 – CE Standard
with numerical control programmer (3 controlled axis) for joinery, furniture, bespoke furnishings, wooden joinery, doors, panels, plastics, composite materials and various other applications
Technical data:
Electronic programmer with 3 controlled axis (spindle lifting – spindle tiltimg – spindle guide) allowing up to 98 programmes to be stored and executed automatically
Spindle diameter mm 35
Spindle tilting -10° to +45°
Spindle speed rpm 3000/4500/6000/7000/10000
Motor power Hp 7,5
Table length mm 2600
Max spindle projection mm 215
Work surface height from ground mm 920
N° 2 dust extraction inlets diameter mm 120
Equipped with Maggi 4-roller automatic feeder Maggi with variable speed control
Overall dimensions mm 2600 x 1300 x 1800 h
Weight kg 1400
Code: ML0505
- Italy
- použité
