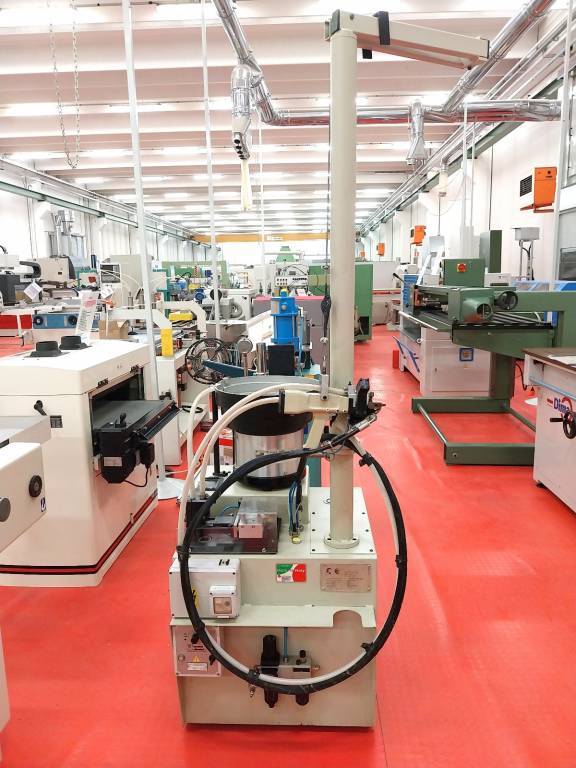

Machine for applying thick glue and dowels DUE B.ERRE STEMA - ITALY - SPINAMATIC GLF HP - CE Standard
with pneumatic gun for panels, for doors, windows and various
Technical data
Max insertion capacity 60 dowels per minute
Dowel diameter mm 10/12 mm
Dowel length mm 25 to 50 mm
Max insertion depth 30 mm
Machine works with one diameter of dowels at a time
Electronic dosing of glue quantity
Washing system
Flexible arm provided with counterweight that makes the gun lighter during the work cycle (gun weight approx 3 kg)
Recommended adhesive type: Water-based emulsion adhesive - Viscosity Brookfield 580 mPa.s - Solids content 30% - Min film formation temperature 3–5 °C - Cleaning with water
Wheels on base
Voltage 220 V single-phase
Max pressure 6 atm
Overall dimensions mm 600 x 1000 x 2100 h
Weight kg 130
- Italy
- použité
