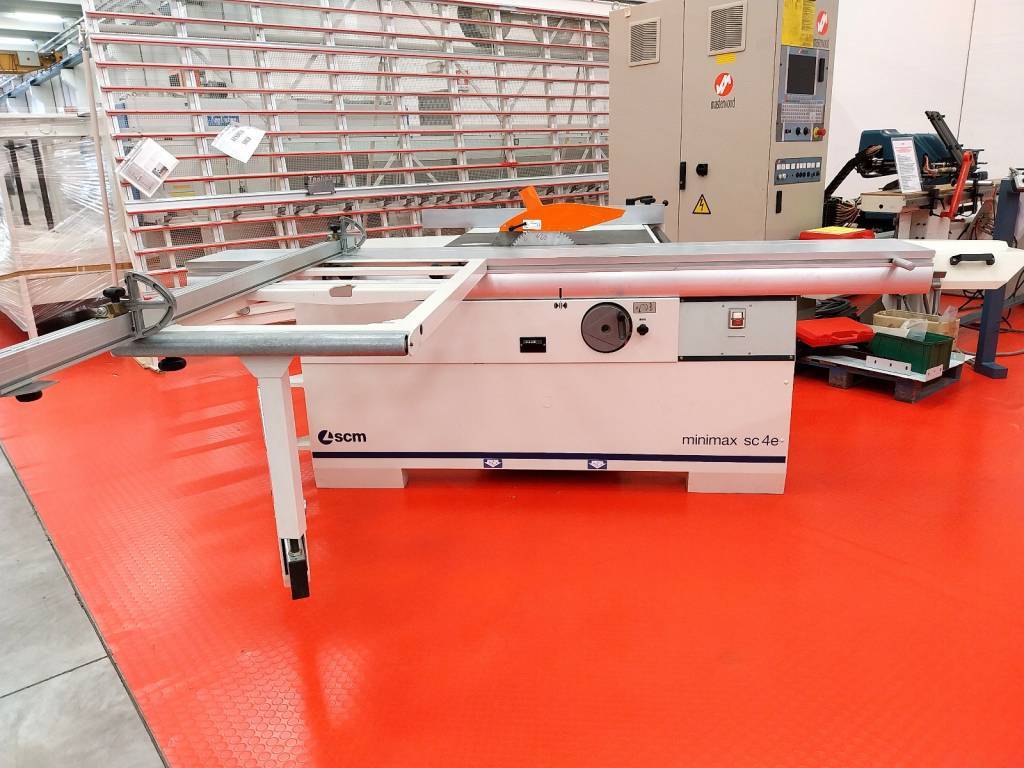

Panel saw with tilting blade and scoring unit SCM MINIMAX SC 4/E CE Standard - Year 2022
for precise cutting of panels, furniture, custom-made furnishings, window frames , wooden doors, joinery, plastics, composite materials and various
Technical data:
Saw unit consisting of a powerful closed-ring cast iron structure
Blade inclination 0-45°
Max blade diameter with mounted scoring unit mm 315 - F 30
Max blade projection from the table at 90° mm 100
Max blade projection from the table at 45° mm 70
Aluminium carriage length mm 2600
Scoring unit blade diameter mm 100 F 20
Blade rotation speed 3800 rpm
Blade motor power Kw 4
Scoring unit motor power Kw 0,5
Cutting width with parallel guide mm 900
Saw guide unit with micrometric rack adjustment
Squaring frame complete with front roller
Telescopic squaring ruler with 2 reversible stops
Suction port diameter mm 120
Suction port diameter on protective hood mm 60
Overall dimensions of assembled machine mm 3000 x 3100 x 1000 h
Overall dimensions for transport mm 3000 x 1500 x 1200 h
Weight kg 530
Code: ML0232
- Italy
- použité
