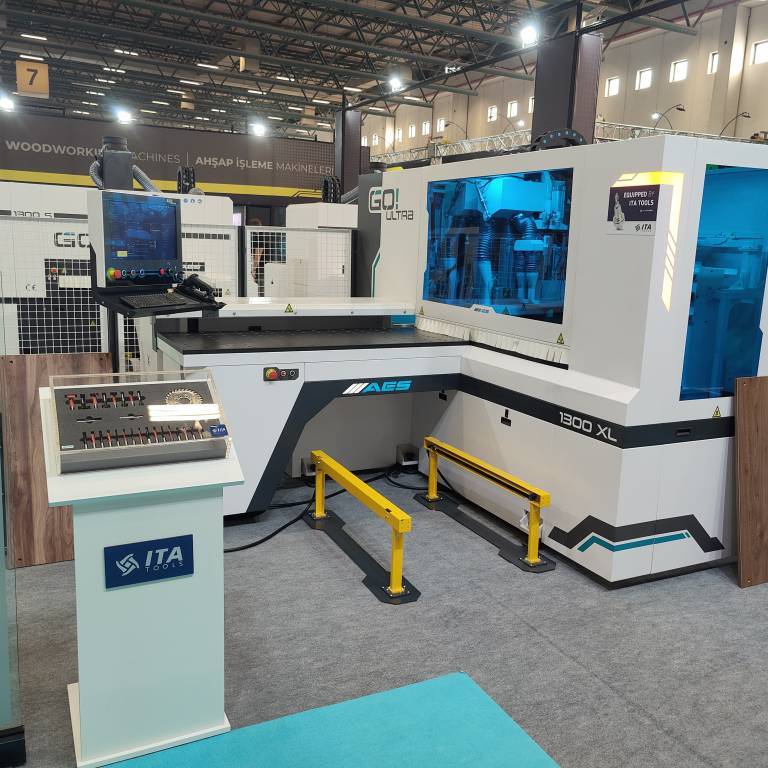

cnc drilling center with drilling unit and spindle on the top and bottom

Marca:
Aes
Modello:
Go ultra xl 1+1ff
Descrizione:

Working Dimensions X:3700 mm / Y: 1300mm / Z: 60 mm
Working Speeds X: 120m/min / Y: 70m/min - Z: 20m/min
Z1: HSD Boring Unit (11 Vertical D rill - 3x2 Horizontal - 1Saw Blade) - At Top
Panel Handling with Double Clamping System (Independent Servo Control)
Air Flotation Working Table(Loading Side) / C onveyor Output
AES WOP CAD/CAM Program
Weight (Approx.) 3.500 kg
Z2: HSD Boring Unit (9 Vertical Drill) - At Bottom
5,5 Kw I 7.50 HP ER32 Manual HSD Spindle Motor - At Top
5,5 Kw I 7.50 HP ER32 Manual HSD Spindle Motor - At Bottom

Anno:
2023
