Make:
Balestrini
Model:
Pico cn
Description:

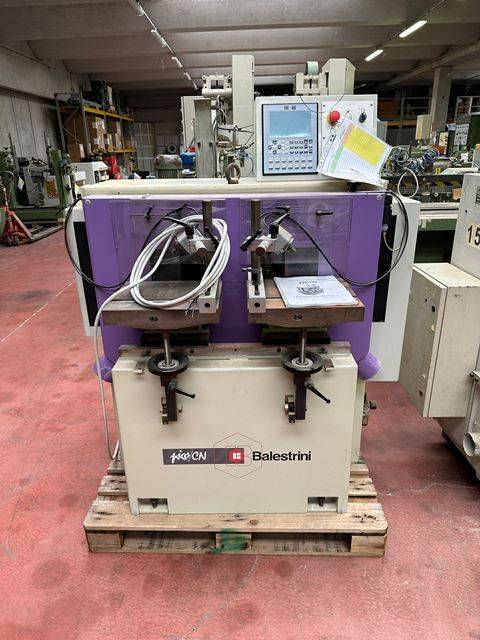

4FT752303 Round end tenoner with 2 benches BALESTRINI MOD. PICO CN – CE RULES
- max. horizontal tenon length 160 mm
- max. vertical tenon length 100 mm
- max. bench inclination 20°
- inclination of workpiece support guides: 45°
- production: 600/700 tenons per hour
- spindle Ø 25 mm
- benchs:
* dimensions 315x360 mm
* longitudinal axis inclination 0° ÷ -20°
* piece support guide adjustment 0° ÷ 45°
- Numerical Control
* piece support guide adjustment 0° ÷ 45°
* axis movements 2 DC motors “brushless”
* X axis stroke 600 mm
* Y axis stroke 200 mm
* X, Y axis speed 15 m/min.
* execution of programs in quick tasks
* program memory 1000 pcs.
* programming using macros
- 9000 / 12000 rpm.
- cutter motor power 4 hp
- volts. 380/50
- year 2012
- CE Standards
Year:
2012
- Italy
- Second hand
