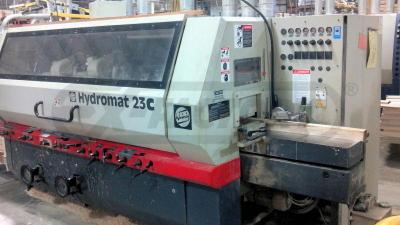

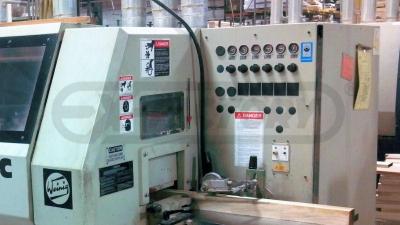

WEINIG, "H 23 C", 6-Head Moulder (Feed Through), MF-012377
Wersja do wydrukuPhotos
![Photos #1 - WEINIG, "H 23 C", 6-Head Moulder (Feed Through), MF-012377: WEINIG, H23C, 6-Head, moulder, feed through, spindle, cutterhead, jointer, profile, sound neclosure, pedestal](http://www.macchine-legno.com/files/MF-01237701.jpg "Photos #1 - WEINIG, "H 23 C", 6-Head Moulder (Feed Through), MF-012377: WEINIG, H23C, 6-Head, moulder, feed through, spindle, cutterhead, jointer, profile, sound neclosure, pedestal") |
![Photos #2 - WEINIG, "H 23 C", 6-Head Moulder (Feed Through), MF-012377: WEINIG, H23C, 6-Head, moulder, feed through, spindle, cutterhead, jointer, profile, sound neclosure, pedestal](http://www.macchine-legno.com/files/MF-01237702.jpg "Photos #2 - WEINIG, "H 23 C", 6-Head Moulder (Feed Through), MF-012377: WEINIG, H23C, 6-Head, moulder, feed through, spindle, cutterhead, jointer, profile, sound neclosure, pedestal"){kind=small} ![Photos #3 - WEINIG, "H 23 C", 6-Head Moulder (Feed Through), MF-012377: WEINIG, H23C, 6-Head, moulder, feed through, spindle, cutterhead, jointer, profile, sound neclosure, pedestal](http://www.macchine-legno.com/files/MF-01237703.jpg "Photos #3 - WEINIG, "H 23 C", 6-Head Moulder (Feed Through), MF-012377: WEINIG, H23C, 6-Head, moulder, feed through, spindle, cutterhead, jointer, profile, sound neclosure, pedestal"){kind=small} ![Photos #4 - WEINIG, "H 23 C", 6-Head Moulder (Feed Through), MF-012377: WEINIG, H23C, 6-Head, moulder, feed through, spindle, cutterhead, jointer, profile, sound neclosure, pedestal](http://www.macchine-legno.com/files/MF-01237704.jpg "Photos #4 - WEINIG, "H 23 C", 6-Head Moulder (Feed Through), MF-012377: WEINIG, H23C, 6-Head, moulder, feed through, spindle, cutterhead, jointer, profile, sound neclosure, pedestal"){kind=small} |
Dane techniczne
| Typ: | Używane maszyny do drewna |
| Kategoria: | STRUGARKI CZTEROSTRONNE |
| Lokalizacja: | United States |
| marka: | WEINIG |
| Model: | "H 23 C" |
| Rok: | 1999 |
| Wyznaczona cena €: | |

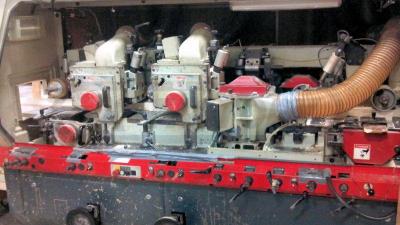

• 6-Head (B-R-L-T-T-B), working cap. 9-1/16" x 4-3/4". • Spindle sequence: Bottom 15 HP, right 15 HP, left 15 HP, top 25 HP, top 25 HP and bottom 20 HP motor.
• Spindle dia. 1-13/16" with cutterhead speed of 6,000 RPM. Mechanical digital readouts on all spindles. Manual radial adjustment of top spindles. Spindles #4,5,6 with "Hydro-Lock" outboard bearings.
• Straight jointer on spindle #1; Profile jointers on #2,3,4,5,6 (full dimension jointing), profile jointers operated outside the sound enclosure, self indexing.
• Feed equipped with: 10 HP Feed drive, variable feed speed from 20 - 200 FPM, all feed wheels driven and with pneumatic pressure.
• 4' Infeed table with (2) rollers above and (1) driven table roller.
• Complete with: Central lubrication, automatic waxilit pump,sound enclosure and safety hood with (2) inside lights.

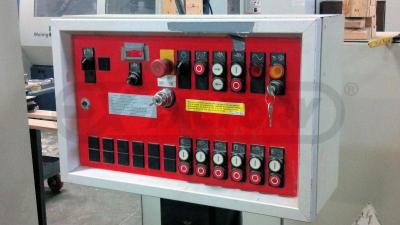

• Control panel separate from machine with free standing pedestal.
• Reduced distance feed roller opposite tight spindle for short stock! – [Ref. MF-012377]
200 FPM, jointed with heavy HP all spindles.
FOB – Midwest USA
Good Condition
USD $42,900
| |
