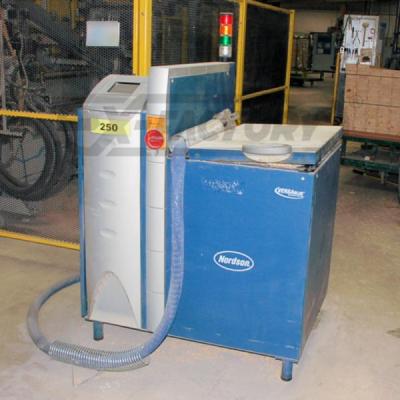

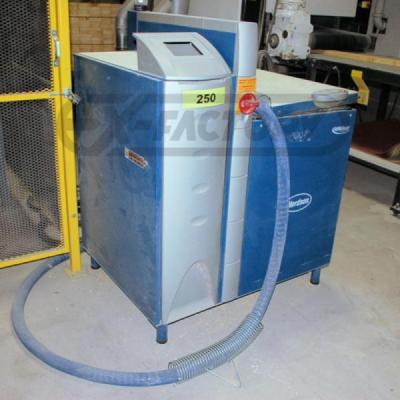

• The VersaBlue melters are designed for precise, demanding hot melt adhesive applications. A choice of metering spur-gear pumps with variable-speed AC motors satisfies a wide range of manufacturing requirements.

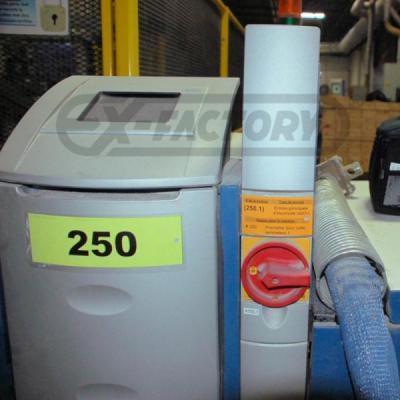

• A grid and reservoir tank design reduces adhesive degradation while maximizing adhesive throughput. A powerful industrial PC provides full control of the adhesive system via touch-screen interface and graphical status display of the tank, hoses and guns.

•  Engineered for reactive materials; closed system design to prevent adhesive from curing prematurely. Offers application flexibility, reliable performance and easy operation.

•  Features: Install quickly and easily.

• Provide easy day-to-day operation.

• Simplify routine maintenance with maximizes uptime.

• Entry panels make access to melter components quick and easy.

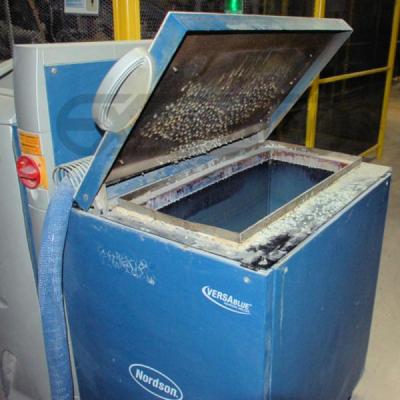

• Large, accessible tank opening allows easier filling and cleaning.

• Pump shut-off valve and single-tool removal provide quick, easy pump replacement.

• SPECIFICATIONS:

• Type of system: Release-coated grid and reservoir, spur-gear pump with variable speed AC drive.

• Number of pumps: (1).

• Maximum pump rate: 1.4 to 82 Kg/Hr (3 to 180 Lbs/Hr).

• Filter type: Saturn basket-style filter.

• Max. working hydraulic pressure:  85 Bars/8.5 Mpa (1,230 PSI).

• Operating temperature range: 40 to 230° C (100 to 450° F).

• Ambient temperature range: 0 to 50° C (32 to 122° F).

• Temperature control stability: ± 1°C (2° F).

• Max. system power capacity for 100 liter: With 1 hoses 23,490 watts.

• Input/output capability standard: 7 outputs; 10 inputs.

• Holding capacity: 100 L or 97 Kg (213 Lbs).

• Throughput (per hour): 150 Kg (330 Lbs).

• Melt rate (per hour) 100 Kg (220 Lbs). There are (2) identical units available; they were installed in 2009. – [Ref. GE-010783]

A machine in this condition and specification is hard to find!

YMFG - 2008

FOB – Eastern CDN

Very Good Condition

USD 24,850
