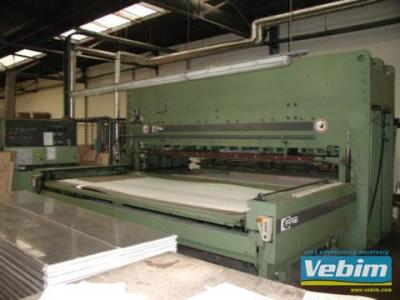

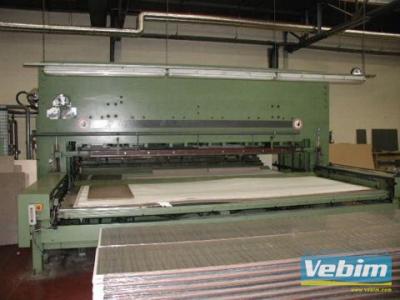

Horizontal press with the possibility of turning into a membrane press by bringing in a frame with membrane, in order to press profiles with a height up to 80 mm.
Pressplaten sizes: 4300 x 1500 mm.
Used size for flat press: 4200 x 1400 mm
Used size for membrane press (workpiece thickness: 80 mm): 4100 x 1300 mm
Input side: 4300 mm
Total pressure: 430 Tons
Specific pressure: 8 kg/cm2
Number of downstroke rams: 10, each with 140 mm diameter
Pressplatens are drilled steelplatens with a thickness of 92 mm.
Max. opening: 500 mm
2 shuttle tables
Max. operational temperature: 150°C (heater not included)
Heating consumption at 140° C and 30 cycles/h: approx. 65000 kcal/h
When turning into a membrane press, a 85 mm high pressure frame with a membrane comes into the press
Vacuumpump
Total electrical power: 98 kW
Membrane heating: 68 kW
Weight: ca. 50 Tons
Incl. 2 spare membranes
