MONCO, "TB-60", Top & Bottom Laminator, LA-010992
Photos

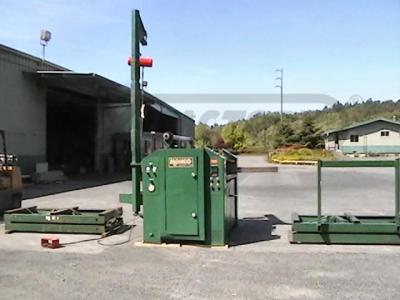

![Photos #1 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel](http://www.macchine-legno.com/files/LA-01099201.jpg "Photos #1 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel") |

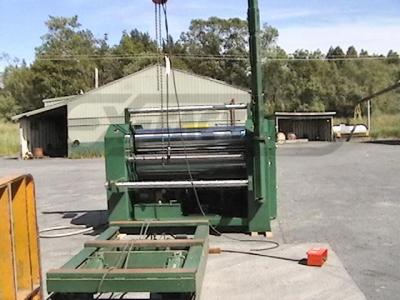

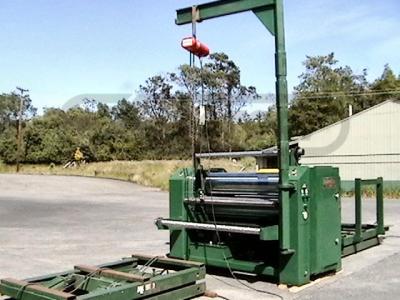

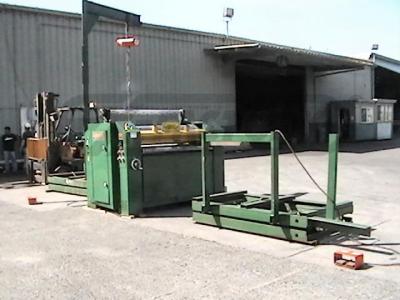

![Photos #2 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel](http://www.macchine-legno.com/files/LA-01099202.jpg "Photos #2 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel"){kind=small} ![Photos #3 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel](http://www.macchine-legno.com/files/LA-01099203.jpg "Photos #3 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel"){kind=small} ![Photos #4 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel](http://www.macchine-legno.com/files/LA-01099204.jpg "Photos #4 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel"){kind=small} ![Photos #5 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel](http://www.macchine-legno.com/files/LA-01099205.jpg "Photos #5 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel"){kind=small} ![Photos #6 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel](http://www.macchine-legno.com/files/LA-01099206.jpg "Photos #6 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel"){kind=small} ![Photos #7 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel](http://www.macchine-legno.com/files/LA-01099210.jpg "Photos #7 - MONCO, "TB-60", Top & Bottom Laminator, LA-010992: MONCO, laminator, top and bottom, panel"){kind=small} |
Datos técnicos
| Tipo: | Maquinaria para madera de segunda mano |
| Categoría: | LISTONADORAS - PRENSAS PARA LA PRODUCCIÒN DE LISTONES EN MADERA |
| Ubicación: | United States |
| Marca: | MONCO |
| Modelo: | "TB-60" |
| Año: | |
| Precio €: | |

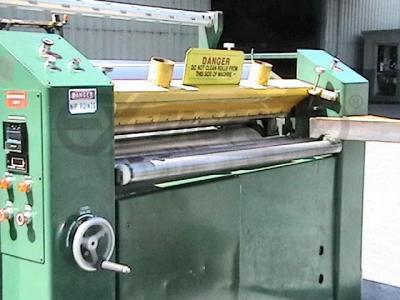

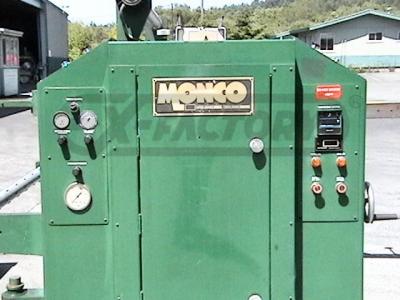

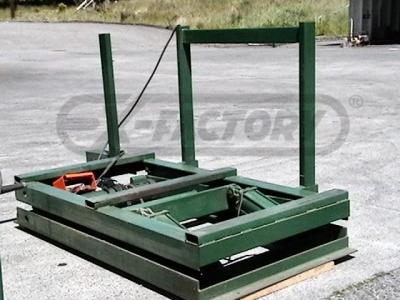

• Purchased by the current owner in 2007 and was never put into production; in storage since that time. • Laminator reconditioned with: New seals on the hydraulic roll lifting cylinders; new seals on the hydraulic pump; new oil heater. • Both Top & Bottom laminating rolls re-chromed; interior of both rolls cleaned & descaled; new bearing on top & bottom laminating rolls. • Both rolls modified with access plugs on the end to simplify and speed up the process of servicing & interior cleaning. • New pivot in both scissors lifts. • 65" Cap., Top & Bottom Laminator with oil heated chrome plated rollers, 14" roller dia., 25 - 106 FPM, 5 HP feed motor, 48 kW oil heating system, 400° F max. heating including over-temperature cutoff safety device. • Equipped with: 1 HP Oil circulation pump & a 1.5 HP hydraulic system for up to 900 PSI line pressure; 3" dia. x 4" stroke cylinders control roll pressure. • System requires: 60 KVA Electrical power supply and 100 PSI compressed air. • Complete with: Solid-State temperature, high limit & cool down controls; manual emergency stop system on all (4) columns to stop the drive & raise the rolls; optical emergency stop at the machine infeed, outfeed conveyor and infeed fence. • Includes: 360° Swivel Jib Crane for loading and unloading of paper rolls, COLUMBUS McKINNON model "F" 1/2 ton & electric hoist included; hoist operating speed of 16 FPM. • (2) Aluminum pneumatic core lug shafts manufactured by EMT INTERNATIONAL, Green Bay, Wisconsin; shafts eliminate the manual locking and greatly speed up roll re-loading (value of new shafts in 2007 ...$ 3,465). - [Ref. LA-010992]
Very good condition MONCO that has had some rebuilding done to it shortly before taking out of service.
FOB – West Coast USA Very Good Condition USD 37,900 | |
