High Speed Finger Jointing Line, Finger-Jointer FAMAD PDFD 2004!!
Photos
 |
       |
Datos técnicos
| Tipo: | Maquinaria para madera de segunda mano |
| Categoría: | VARIOS |
| Ubicación: | Poland |
| Marca: | FAMAD |
| Modelo: | PDFD |
| Año: | 2004 |
| Precio €: | |

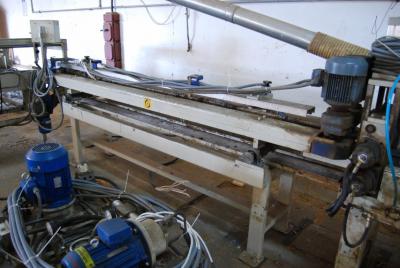

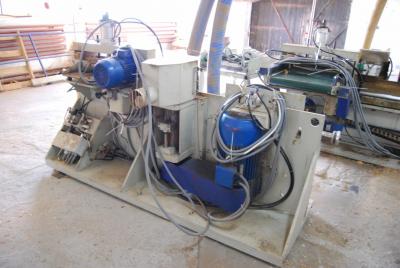

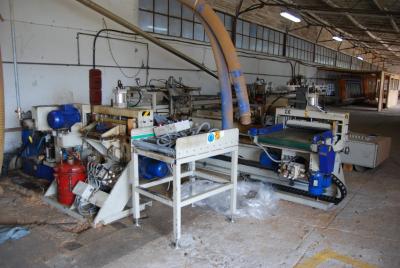

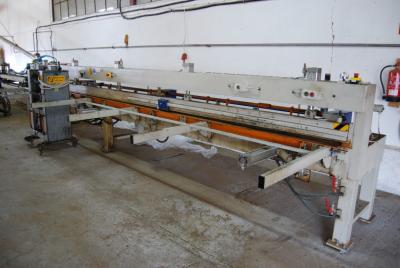

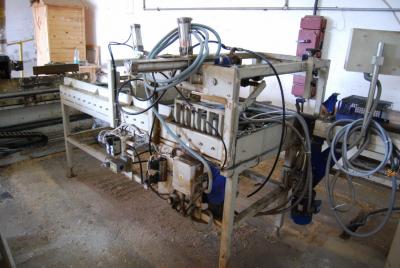

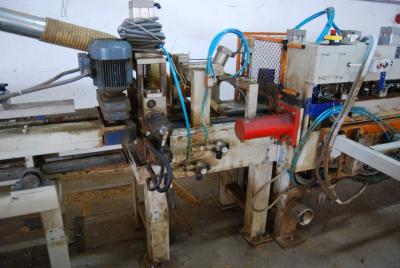

Finger Jointing Production Line FAMAD PDFD Type/Model: PDFD Construction Year: 2004 Condition: Very Good Line consist: • Multi table material belt conveyor, • 1st finger jointer shaper machine, • 2nd finger jointer shaper machine, • auto pusher and belt conveyor, • high-speed chain storage conveyor, • double section press Technical Data: • The width of the input packet shapers milling: 600mm • Width of glued elements: 40 ÷ 155 • Length of glued elements: 170 ÷ 900 • Thickness of the bonded components: mm20 ÷ 70 • Working air pressure: 0.6 MPa • Compressed Air: m³ / h, about 25 • Working capacity: 2.5 cycle/min (bar 6600mm long) • Length of the item glued: mm 4500 ÷ 6600 • Operating Voltage: V AC 3 x 400 + N + PE • Control voltage: 24 V DC Movie of working line: http://www.youtube.com/watch?v=tFscgw0zyS4&feature=related Price: on request | |
Contacto
LIGNUM / Tel. +48602581674 or +48602622599 / Email: kamil@lignum-maszyny.pl or lignum@lignum-maszyny.pl / Website: www.lignum-maszyny.eu
