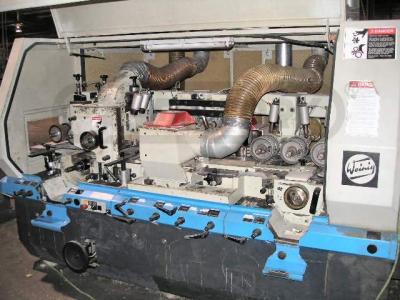

WEINIG, "U 30 EL", Moulder (Feed Through), MF-012246
Photos
![Photos #1 - WEINIG, "U 30 EL", Moulder (Feed Through), MF-012246: WEINIG, U30EL, moulder, feed through, 5-Head, spindle, pedestal, safety enclosure](http://www.macchine-legno.com/files/MF-01224601.jpg "Photos #1 - WEINIG, "U 30 EL", Moulder (Feed Through), MF-012246: WEINIG, U30EL, moulder, feed through, 5-Head, spindle, pedestal, safety enclosure") |
![Photos #2 - WEINIG, "U 30 EL", Moulder (Feed Through), MF-012246: WEINIG, U30EL, moulder, feed through, 5-Head, spindle, pedestal, safety enclosure](http://www.macchine-legno.com/files/MF-01224602.jpg "Photos #2 - WEINIG, "U 30 EL", Moulder (Feed Through), MF-012246: WEINIG, U30EL, moulder, feed through, 5-Head, spindle, pedestal, safety enclosure"){kind=small} |
Datos técnicos
| Tipo: | Maquinaria para madera de segunda mano |
| Categoría: | MOLDURERAS |
| Ubicación: | United States |
| Marca: | WEINIG |
| Modelo: | "U 30 EL" |
| Año: | 1998 |
| Precio €: | |
• 5-Head (B-R-L-T-B), working dimension 12 in. x 4-3/4 in.
• Head sequence: Bottom 20 HP, right 10 HP, left 10 HP, top 30 HP and bottom 20 HP motor. All motors with mechanical spindles brakes.
• Spindle dia. 2-1/8 in. with cutterhead speed of 6,000 RPM. Outboard bearings on spindles 1,4 and 5, Mechanical readouts for all spindles. Axial adjustment of vertical spindles 3-1/8 in.
• Weinig CAS-LOGO Com software computer aided machine setting. Storage of 9,900 profiles.
• Variable feed speed from 20 - 118 FPM, 10 HP feed drive; overhead feed wheels with pneumatic pressure, powered table rollers between top spindles and at outfeed. Lateral adjustment of feed rollers opposite left spindle from 1-3/8 in. to 6 in.
• Infeed straightening table 1.2 M (4'0"), side pressure roller attached to infeed table.
• Manual Waxilit pump and central lubrication, (2) lights in machine enclosure.
• Sound and safety enclosure with mechanical safety interlock.
• Free standing pedestal for machine controls. - [Ref. MF-012246]
Ok flooring producers, here is the machine you all ask for!! Call for price!
USD $79,900
| |
