Edge Banding Machine HOLZ-HER SPRINT 1321
Construction Year: 2005
Machine Condition: Good

Automatic machine to apply the edge into straight profiles
• Applicable banding material in coils: thin edge and PVC up to 3 mm
• Applicable banding material in strips: solid wood

SYSTEM AND OPTIONALS OF THE PANEL HANDLING
• Running driving chain
• Top pressure unit made by lines of idle wheels
• Top pressure unit with adjustable height in automatic by numerical control
• Input panel guide is motorized and with adjusting in automatic by numerical control
• Lateral bar with lines of idle wheels to support the panels

WORKING UNITS ON THE SQUARING SIDE
• Pre milling unit to rectify the side of the panel. It is made by 2 motors with automatic in/out intervention to avoid splinters on the panel - motors power 2 KW ( 12000 RPM)

GLUING UNIT, INSERTION AND PRESSION OF THE EDGE
• Support for edge coil
• Glue injecting system by cartridges
• Spreading roller to regulate the quantity of apllied glue
• Guillotine to cut the edge in coils
• Roller set to press the edge on straight profiles - nr. 1 + 2 pression rollers - motorized regulation of depth position in automatic by numerical control

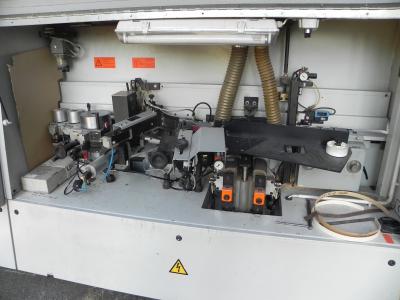

WORKING UNITS ON THE EDGE BANDING SIDE
• End cutting unit with 2 motors to cut the excess edge on the front and back part of the panel - motors tiltable 0 / 10 degree - tilting regulation in automatic - motors power 0.35 KW ( 9000 RPM)
• Top and bottom rough trimming unit - motors power 0.6 KW ( 18000 RPM)
• Fine trimming unit to trim and round off the excess edge on the top and bottom part of the panel - motors tiltable 0 / 15 degree - regulation of the tilting by hand with visual unit - motors power 2 x 0.6 KW ( 18000 RPM)
• Edge scraping unit for the edge superfinishing
• Rounding unit - nr. 1 motors to automatically round off the edge corners on the top and bottom part of the panel - motors power 0.6 KW ( 18000 RPM)
• Brushing unit with 2 motors to clean and polish the upper and lower edge

CONTROL OF THE MACHINE AND ACCESSORIES

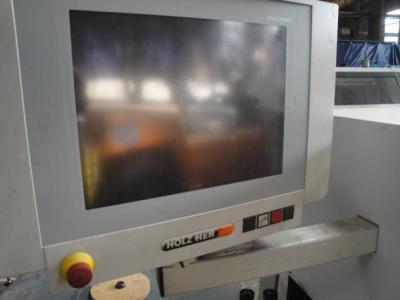

• Control and program system HOLZHER + WINDOWS - visual display
• Adjustable hanging command board to control the machine
• Incorporated electrical cabinet

NORM AND OPTIONAL FOR THE SECURITY
• Security norme CE mark
• Safety and sound-proof enclosure cabinet of the working units
• Aspiration system on the top part of the safety enclosure cabinet
