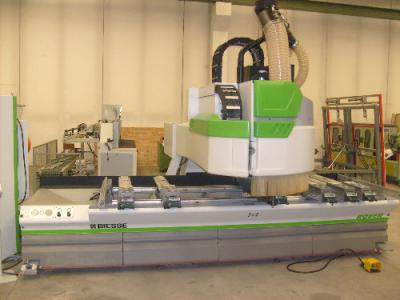

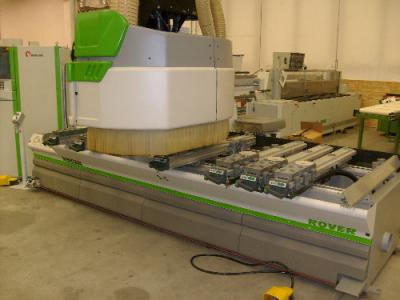

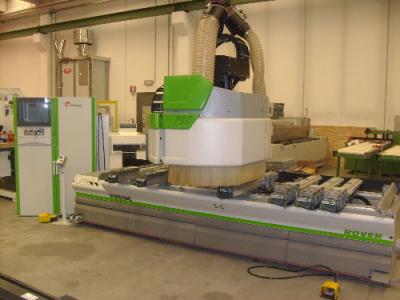

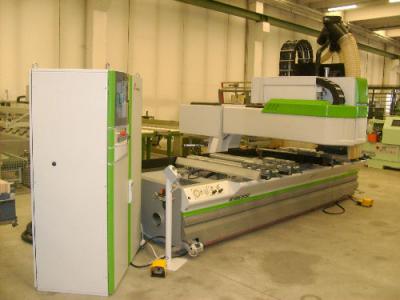

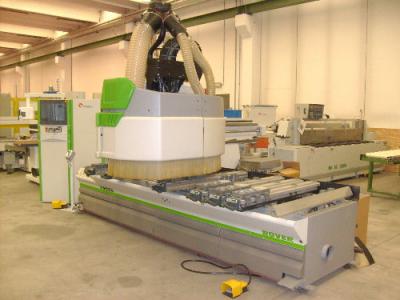

WORKING CENTER WITH NUMERICAL CONTROL WITH 4 CONTROLLED AXIS - BIESSE ROVER 24 - S
Photos
 |
    |
Technical data
| Type: | Woodworking machinery second hand |
| Category: | MACHINING CENTERS |
| Location: | Italy |
| Make: | BIESSE |
| Model: | ROVER 24 - S |
| Year: | |
| Quotation: | |
WORKING CENTER WITH NUMERICAL CONTROL WITH 4 CONTROLLED AXIS - BIESSE ROVER 24 - S CE STANDARD YEAR 2002 WORKING SIZE: X AXIS 3060 MM - Y AXIS 1380 MM PIECE PASSAGE 155 MM STROKE X AXIS MM 3436 - STROKE Y AXIS MM 1780 - STROKE Z AXIS MM 250 4° INTERPOLATING AXIS : AGGREGATES CAN TURN 360° CONTINUOSLY REVOLVER TOOLS CHANGING WITH 10 POSITIONS REVOLVER TOOLS CHANGING 6/7 POSITIONS MOUNTED ON TABLE Z MILLING UNIT HP 10 BORING UNIT: N° 14 CHUCKS VERTICAL BORING - N° 6 CHUCKS HORIZONTAL BORING BLADE DIAMETER MM 120 BLADE MOTOR POWER HP 3 VACUUM PUMP METER CUBE 100 NUMERICAL CONTROL NC 500 - TABLE ATS: TO BLOCK QUICKLY PIECES ANY SHAPE OR DIMENSIONS POSITIONING DISPLAY OF WORKING TABLES AUTOMATIC SUCTION CAP CENTRALIZED LUBRIFICATION 2 WORKING AREA- DOUBLE BACKSTOP THERMAL CONDITIONER OVERALL DIMENSIONS: LENGHT MM 5400 - WIDTH 3950 MM - HEIGHT 2730 MM DIMENSIONS FOR SHIPMENT: MM 5100 X 2200 X H2400 COD: ML0682 | |
