HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356
Photos
![Photos #1 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure](http://www.macchine-legno.com/files/TE-01035601.jpg "Photos #1 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure") |

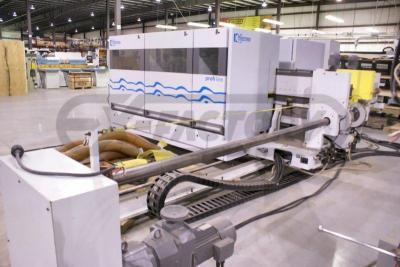

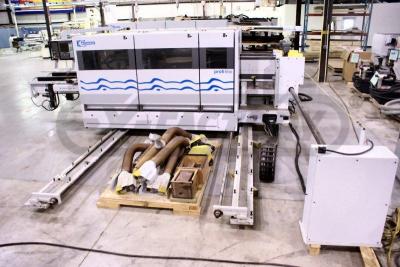

![Photos #2 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure](http://www.macchine-legno.com/files/TE-01035602.jpg "Photos #2 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure"){kind=small} ![Photos #3 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure](http://www.macchine-legno.com/files/TE-01035603.jpg "Photos #3 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure"){kind=small} ![Photos #4 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure](http://www.macchine-legno.com/files/TE-01035604.jpg "Photos #4 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure"){kind=small} ![Photos #5 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure](http://www.macchine-legno.com/files/TE-01035605.jpg "Photos #5 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure"){kind=small} ![Photos #6 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure](http://www.macchine-legno.com/files/te-01035606.jpg "Photos #6 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure"){kind=small} ![Photos #7 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure](http://www.macchine-legno.com/files/TE-01035607.jpg "Photos #7 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure"){kind=small} ![Photos #8 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure](http://www.macchine-legno.com/files/TE-01035608.jpg "Photos #8 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure"){kind=small} ![Photos #9 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure](http://www.macchine-legno.com/files/TE-01035609.jpg "Photos #9 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure"){kind=small} ![Photos #10 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure](http://www.macchine-legno.com/files/TE-01035610.jpg "Photos #10 - HOMAG, "FL 20/07/30", Double End Tenoner, TE-010356: HOMAG, FL 20/07/30, NC controlled, LED, 5 stations, jump score, trim, hog, tilting, frequency inverter, PLC control, NC 21, dust extraction, sound enclosure"){kind=small} |
Technical data
| Type: | Woodworking machinery second hand |
| Category: | TENONING MACHINES |
| Location: | United States |
| Make: | HOMAG |
| Model: | "FL 20/07/30" |
| Year: | 2000 |
| Quotation: | |

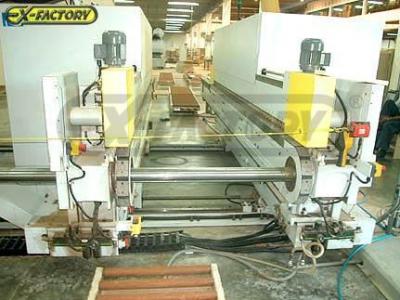

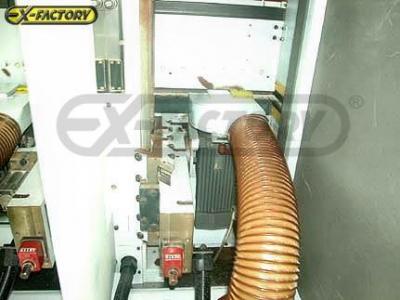

• NC Controlled Tenoner, 98 in. motorized programmable opening with LED readout, 8-5/8 in. min. opening, 48 in. extended infeed prior to upper holddowns, 7-7/8 in. max. panel overhang with panel support rollers on left-hand side, 3-1/2 in. max. programmable motorized panel thickness with LED readout, 37-3/8 in. passline height, left side fixed, 3-post machine. • Each side equipped with (5) stations. - 1st Station: Jump score head, 3 HP - 7,200 RPM HF motor, piggyback mounted to hogging head motor; 2nd Station: Trim/hog head with 15 deg. tilt at 2-3/8 in. panel overhang, 10 HP - 7,200 RPM HF motor. • 3rd & 4th Stations: Jump universal heads with 90 deg. tilt with electro-pneumatic control, 6.5 HP - 7,200 RPM HF motor with frequency inverter. • 5th Station: Universal (tilting) head, 6.5 HP - 7,200 RPM HF motor with frequency inverter. • All important head adjustments with: Mechanical digital readouts, all heads with 60 mm long arbors unless noted, all motors with frequency inverters and reversible arbor rotation (score & trim arbors not reversible). • PLC Control, "NC 21" operator interface, keypad entry, LCD display; (40) control programs each with (160) functions for width, thickness, line points & dog selection; integrated line control, and fault diagnostics display; interface to IBM PC is possible. • Variable feed speed from 25 - 130 FPM, feed drive with magnetic brake, driven upper holddowns with continuous double V-belts, dog spacing on 39 in. centers with disappearing dogs, adjustable dog height 0 in. - 15/16 in. with 4-position turret stop, extended outfeed with 27-1/2 in. outfeed transport conveyor. • Complete with: Full sound enclosures with centralized dust extraction, free-standing electrical control cabinet, operating instructions, electrical prints, and parts manual. (JS-TH-TJC-TJC-U) - [Ref. TE-010356]
Well-equipped late model HOMAG Tenoner; ...used very little and itching to get to work!
YMFG - 2000 FOB - Midwest USA Very Good Condition USD 85,000 | |
