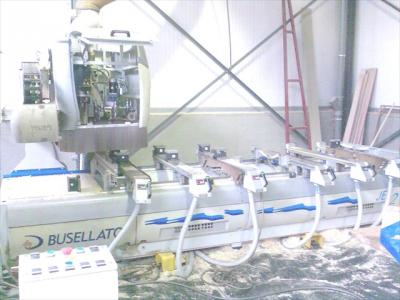

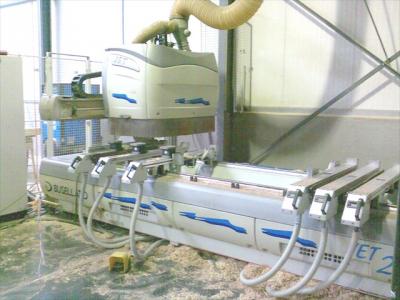

CNC WORKING CENTRE FOR BORING ROUTING BUSELLATO JET 2
Photos
 |
     |
Technical data
| Type: | Woodworking machinery second hand |
| Category: | MACHINING CENTERS |
| Location: | Italy |
| Make: | BUSELLATO |
| Model: | JET 2 |
| Year: | |
| Quotation: | |
CNC WORKING CENTRE FOR BORING ROUTING
GENERAL SPECIFICATIONS
► Machine condition: like new
► Working area axes "X","Y" axes: 3050 mm - 1250 mm
► Stoke axes "X","Y": 3410 mm - 1300 mm
► Stoke axis "Z": 170 mm
► Travel speed axes "X","Y": 70 m/min - 60 m/min
SUPPORTING AREA OF THE PANEL
► Working areas
► Nr. 6 movable work tables to support the panels

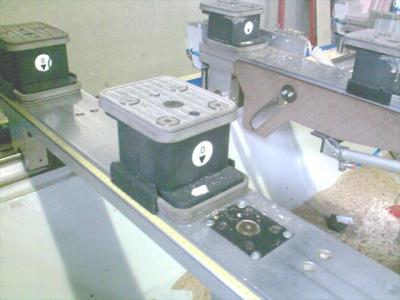

► Suction cups for each work table with vacuum system for the locking of the working piece
► Facilitated loading device through pneumatic bars assembled on the work tables that lift the pieces
► Digital displays that indicate the position of the work tables ("X" axis) and of each suction cup ("Y" axis)
► Nr. 1 vacuum pump
BORING UNITS
► Nr. 1 boring units, each one with the following specifications
► Nr. 7 independent spindles for vertical boring in "X" direction
► Nr. 5 independent spindles for vertical boring in "Y" direction
► Nr. 4 spindles for horizontal boring in "X" direction
► Nr. 2 spindles for horizontal boring in "Y"direction
ROUTING UNITS
► Nr. 1 electro-spindle in vertical position - automatic change of the tool - "C" VECTOR AXIS that allows to turn and 360° angle drive heads with rotation regulation in automatic by numerical control - motor power 9.2 KW
OTHER WORKING UNITS
► Integrated fixed saw unit to make grooves in "X" direction - tool diameter 120 mm
► Nr. 1 electro-spindle in horizontal position with 1 output for saw blade or horizontal routing-drilling - motor power 5.5 KW
TOOL CHANGER MAGAZINE

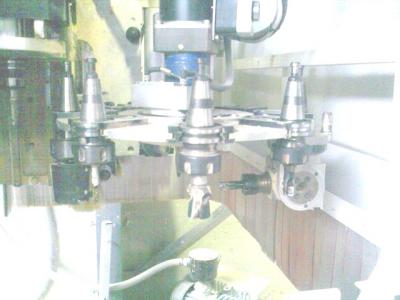

► Tool changer magazine installed on machining head with nr. 8 positions
CONTROL OF THE MACHINE AND ACCESSORIES

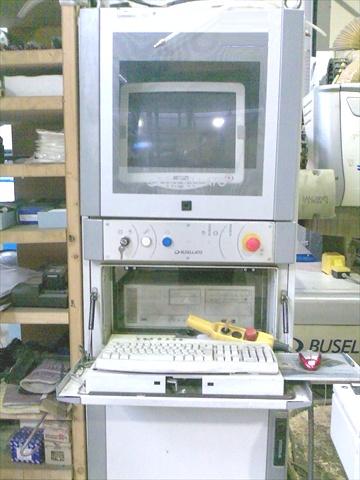

► Control and program system PC + GENESIS EVOLUTION SOFTWARE + WINDOWS with the following features: - pc - screen colour - CD-ROM reader - keyboard
► Control of axes "X" - "Y" - "Z" - "C" VECTOR
► Command board installed on a separated electrical cabinet to control the machine
NORM AND OPTIONAL FOR THE SECURITY
► Security norme CE mark
► Protection and sound-proof enclosure of the working units
► Protection grids installed on the machine
► Front safety carpets
Technical data will be checked when the machine will be in our warehouses
| |
