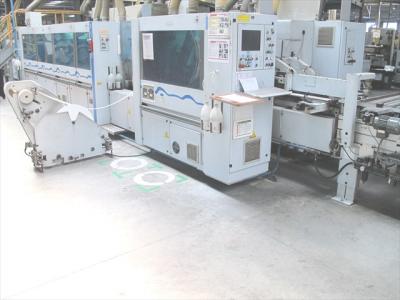

SQUARING AND EDGEBANDING MACHINE DOUBLE SIDED HOMAG KFL 525/7/A3/15
Photos
 |
     |
Technical data
| Type: | Woodworking machinery second hand |
| Category: | EDGEBANDERS |
| Location: | Italy |
| Make: | HOMAG |
| Model: | KFL 525/7/A3/15 |
| Year: | |
| Quotation: | |
► SQUARING AND EDGEBANDING MACHINE DOUBLE SIDED. Automatic machine to apply the edge into straight profiles
GENERAL SPECIFICATIONS
► Industrial machine with heavy-duty structure
► Machine condition: very good
► Machine able to work as first position in a line
► Applicable banding material in coils: thin edge and PVC up to 3 mm
► Max. working width 1.500 mm
► Working units are installed on overtables to simultaneusly adjust them
SYSTEM AND OPTIONALS OF THE PANEL HANDLING
► Driving chain is rurring by roller bearings
► Chain extension length in entry 1000 mm (distance from the beginning of the chain to the machine cabinet)
► Top pression unit made by motorized rubbered belt
► Top pression unit with adjustable height in automatic by numerical control
► Adjusting in continuos feeding speed with regulation in automatic by numerical control 15 / 40 m/min

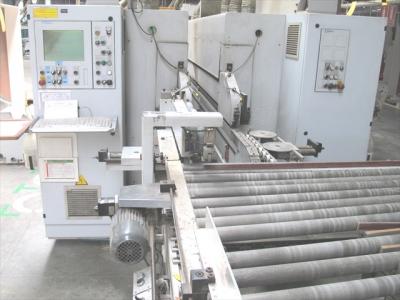

► Input panel guide
WORKING UNITS ON THE SQUARING SIDE FOR EACH SIDE
► Anti-gluing unit made by 2 guns that spray liquid on the top and bottom part of the panel
► Top and bottom double hogging unit - motors power 4.4 KW / 6.6 KW ( 3480 / 7080 RPM)
► Milling shaping unit - automatic in/out intervention - tiltable 0 - 90 degree - motor power 4.4 KW / 6.6 KW ( 3480 / 7080 RPM)
GLUING UNIT, INSERTION AND PRESSION OF THE EDGE FOR EACH SIDE
► Lamp zone to pre-heat the side of the panel

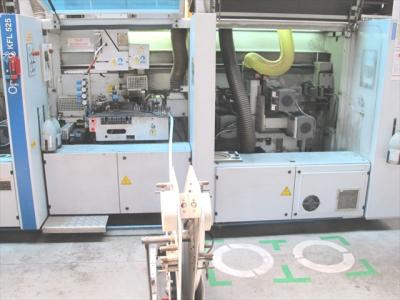

► Multiple magazine for edge coils with nr. 2 positions, to automatically change the edge type
► Hot-melt glue pot and premelter
► Spreading roller to regulate the quantity of apllied glue
► Guillotine to cut the edge in coils
► Roller set to press the edge on straight profiles - nr. 1 + 4 pression rollers - motorized regulation of depth position in automatic by numerical control

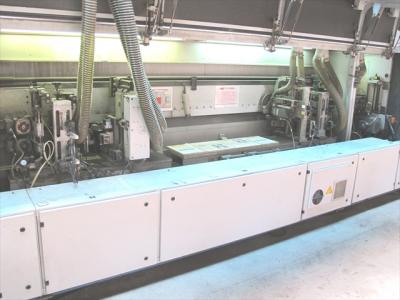

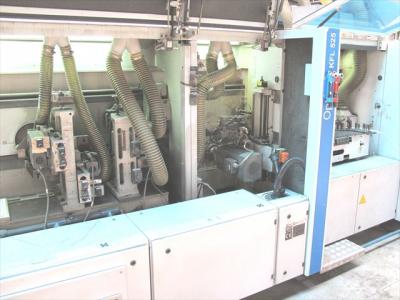

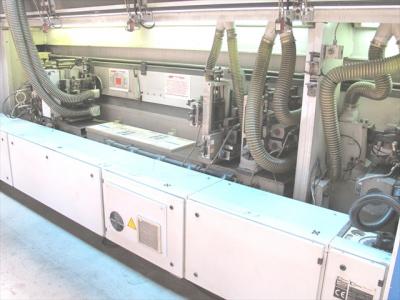

WORKING UNITS ON THE EDGE BANDING SIDE
► Milling shaping unit - tiltable 0 - 90 degree - motor power 4.4 / 6.6 KW ( 3480 / 7080 RPM)
► Top and bottom rough trimming unit - motors power 0.55 KW ( 12.000 RPM)
► Fine trimming unit to trim and round off the excess edge on the top and bottom part of the panel - motors power 0.4 KW ( 12.000 RPM)
► Free space to eventually add on request an additional working unit
► Edge scraping unit for the edge superfinishing
► Glue scraping unit to remove the excess glue from the join between edge and panel
► Brushing unit with 2 motors to clean and polish the upper and lower edge
CONTROL OF THE MACHINE AND ACCESSORIES
► Control and program system HOMATIC NC 21 with the following features: - screen colour - keyboard
► Adjustable hanging command board to control the machine
► Incorporated electrical cabinet
NORM AND OPTIONAL FOR THE SECURITY
► Security norme CE mark
► Safety and sound-proof enclosure cabinet of the working units
► Aspiration system on the top part of the safety enclosure cabinet
Technical data will be checked when the machine will be in our warehouses
| |
