LOADER BARGSTEDT R TBH22/D/30/14/S
Photos
 |
     |
Technical data
| Type: | Woodworking machinery second hand |
| Category: | STACKING DEVICE |
| Location: | Italy |
| Make: | BARGSTEDT |
| Model: | R TBH22/D/30/14/S |
| Year: | |
| Quotation: | |
AUTOMATIC SYSTEM TO LOAD PANELS in squaring-edgebanding line
GENERAL SPECIFICATIONS
► Industrial and fast system
► Machine condition: very good
► Double sides for the loading of the panels into the production line to avoid interruptions
► Panels workable also in double row
► Useful length of the panel 3000 mm
► Vacuum pump
SYSTEM AND OPTIONALS OF THE PANEL HANDLING

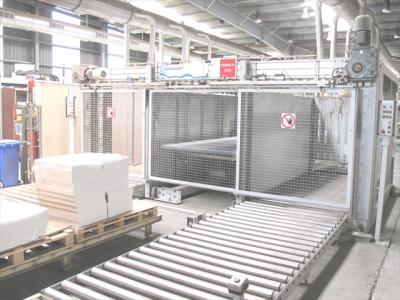

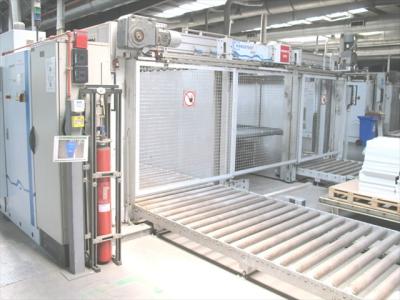

► Introduction of the panels row in the loading system through a motorized roller conveyor on the ground
► Exit of the support panel from the loading system through an idle roller conveyor on the ground

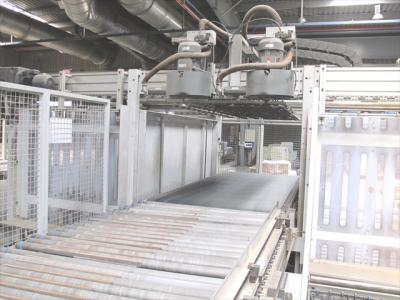

► Motorized transfer conveyor for the introduction of the panels into the production line - with comb-like frame to work panels in double row - approx. width 1500 mm - approx lenght 3000 mm
►Interior motorized lifting table

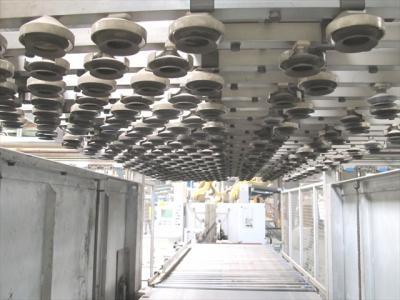

► Suction cup frame for the handling of the working panels that are lifted and put down through a vacuum system for the workpieces locking
► Suction cups for each horizontal bar
► Automatic device to detach the panels from the suction cups
CONTROL OF THE MACHINE AND ACCESSORIES

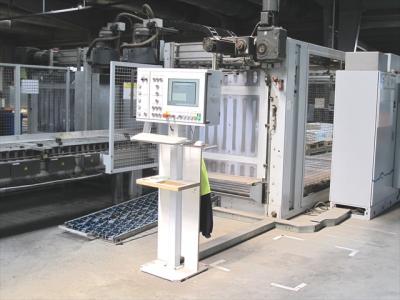

► Control and program system PC POWER CONTROL - pc - screen colour - CD-ROM reader - keyboard
► Adjustable separated command board to control the machine
► Separated electrical cabinet
NORM AND OPTIONAL FOR THE SECURITY
► Security norme CE mark

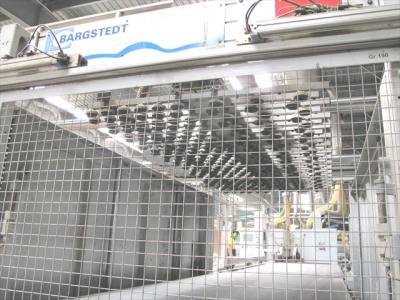

► Protection grids installed on the machine
► Total installed power 21 KW
Technical data will be checked when the machine will be in our warehouses
| |
