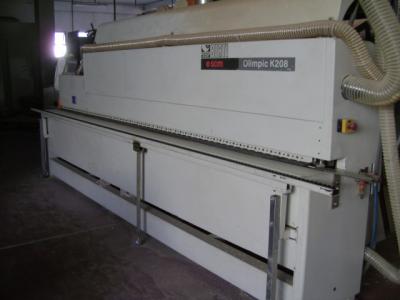

SINGLE SIDE EDGE BANDER SCM OLIMPIC K 208
EDGE BANDER SINGLE SIDED.
GENERAL SPECIFICATIONS
* Machine condition: very good
* Applicable banding material in coils: thin edge and PVC up to 3 mm
* Applicable banding material in strips: solid wood
SYSTEM AND OPTIONALS OF THE PANEL HANDLING
* Running driving chain
* Top pression unit made by lines of idle wheels
* Top pression unit with adjustable height in automatic by numerical control
* Input panel guide
* Lateral bar with lines of idle wheels to support the panels
WORKING UNITS ON THE SQUARING SIDE
* Pre milling unit to rectify the side of the panel. It is made by 2 motors with automatic in/out intervention to avoid splinters on the panel - motors power 2.2 KW
GLUING UNIT, INSERTION AND PRESSION OF THE EDGE
* Support for edge coil
* Hot-melt glue pot
* Spreading roller to regulate the quantity of apllied glue
* Guillotine to cut the edge in coils
* Roller set to press the edge on straight profiles - nr. 1 + 2 pression rollers
WORKING UNITS ON THE EDGE BANDING SIDE
* End cutting unit with 2 motors to cut the excess edge on the front and back part of the panel - motors tiltable 0 / 10 degree - motors power 0.35 KW ( 12.000 RPM)
* Fine trimming unit to trim and round off the excess edge on the top and bottom part of the panel - motors tiltable 0 / 15 degree - regulation of the tilting by hand with visual unit - motors power 0.5 KW ( 12000 RPM)
* Rounding unit - nr. 2 motors to automatically round off the edge corners on the top and bottom part of the panel - motors power 0.5 KW ( 12000 RPM)
* Edge scraping unit for the edge superfinishing
* Brushing unit with 2 motors to clean and polish the edge

CONTROL OF THE MACHINE AND ACCESSORIES

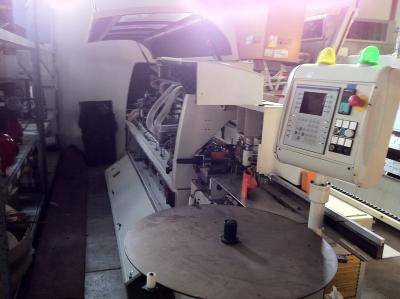

* Control and program system MAGELIS with the following features: - screen colour - visual display
* Adjustable hanging command board to control the machine
* Incorporated electrical cabinet
NORM AND OPTIONAL FOR THE SECURITY
* Security norm CE mark
* Safety and sound-proof enclosure cabinet of the working units
* Aspiration system on the top part of the safety enclosure cabinet
