DOUBLE SIDED SQUARING AND EDGEBANDING MACHINE HOMAG KF 26/7/A3/25

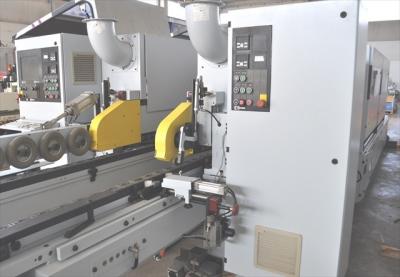

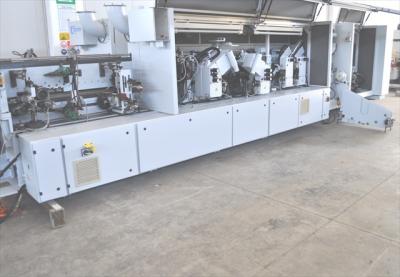

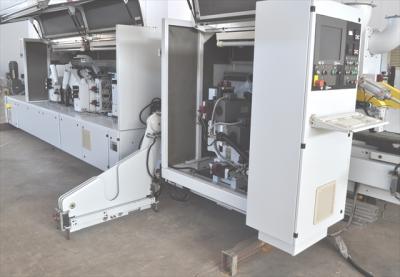

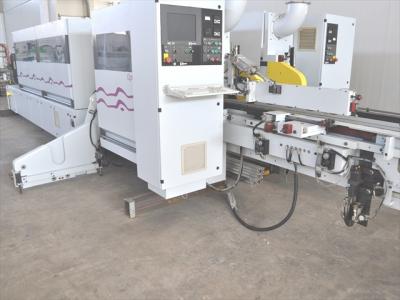

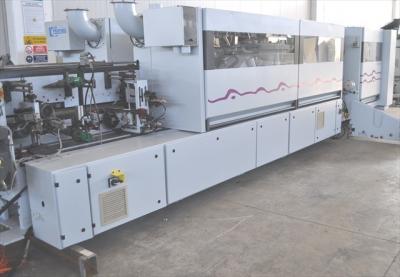

Photos
 |
     |
Technical data
| Type: | Woodworking machinery second hand |
| Category: | COMBINATION MACHINES |
| Location: | Italy |
| Make: | HOMAG |
| Model: | KF 26/7/A3/25 |
| Year: | |
| Quotation: | |
► SQUARING AND EDGEBANDING MACHINE DOUBLE SIDED. Automatic machine to apply the edge into straight profiles
GENERAL SPECIFICATIONS
► Industrial machine with heavy-duty structure
► Machine condition: very good
► Machine able to work both as first or second position in a line
► Max. working panel height with straight edge 60 mm
► Applicable banding material in coils: thin edge and PVC up to 3 mm
► Max. working width 2500 mm
SYSTEM AND OPTIONALS OF THE PANEL HANDLING
► Driving chain is rurring by roller bearings
► Chain extension length in entry 2000 mm (distance from the beginning of the chain to the machine cabinet)
► Top pression unit made by motorized rubbered belt
► Top pression unit with adjustable height in automatic by numerical control
► Adjusting in continuos feeding speed with regulation in automatic by numerical control
► Input panel guide
► Central bar with lines of idle wheels to support the panels
WORKING UNITS ON THE SQUARING SIDE FOR EACH SIDE
► Antisplint milling hogging unit - automatic in/out intervention - in vertical position
► Top and bottom double hogging unit - motors power 3 / 5 KW ( 2860 / 5860 3480 / 7060 RPM)
GLUING UNIT, INSERTION AND PRESSION OF THE EDGE FOR EACH SIDE
► Multiple magazine for edge coils with nr. 2 positions, to automatically change the edge type
► Hot-melt glue pot and premelter
► Spreading roller to regulate the quantity of apllied glue
► Guillotine to cut the edge in coils
► Roller set to press the edge on straight profiles - nr. 1 + 2 pression rollers
WORKING UNITS ON THE EDGE BANDING SIDE FOR EACH SIDE
► End cutting unit with 2 motors to cut the excess edge on the front and back part of the panel - motors power 0.18 KW ( 12000 RPM)
► Top and bottom rough trimming unit - motors power 0.55 KW ( 12000 RPM)
► Double multifunction unit FK 11 with regulation in automatic by numerical control. This unit has a double functions: A) to trim and round off the excess edge B) to round the edge corners on the top and bottom part of the panel - motors power 0.55 KW ( 12000 RPM)
► Milling shaping unit on the left side - automatic in/out intervention - tiltable 0 - 90 degree - motor power 4 / 5 KW ( 8630 / 11600 RPM)
► Free space on the right side to eventually add on request an additional working unit
► Edge scraping unit for the edge superfinishing
► Air Heating unit to heat the edge and reactevate the colour
► Brushing unit with 2 motors to clean and polish the edge
CONTROL OF THE MACHINE AND ACCESSORIES

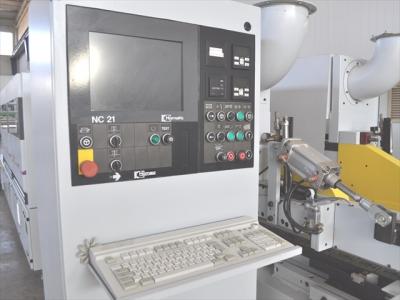

► Control and program system HOMATIC NC 21 with the following features: - screen colour - keyboard
► Command board installed on an incorporated electrical cabinet to control the machine
NORM AND OPTIONAL FOR THE SECURITY
► Security norme CE mark
► Safety and sound-proof enclosure cabinet of the working units
► Aspiration system on the top part of the safety enclosure cabinet
| |
