PROFILE WRAPPING MACHINE FRIZ PU 15/30 PUR/S0
Photos
 |
     |
Technical data
| Type: | Woodworking machinery second hand |
| Category: | GLUE SPREADERS |
| Location: | Italy |
| Make: | FRIZ |
| Model: | PU 15/30 PUR/S0 |
| Year: | |
| Quotation: | |
AUTOMATIC MACHINE TO WRAP STRAIGHT AND POSTFORMED PROFILES

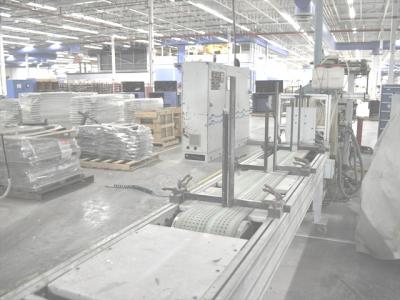

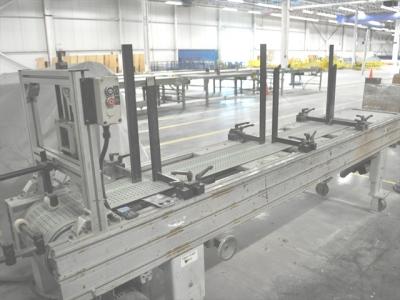

POSITION 1 - TYPE: CONVEYOR
GENERAL SPECIFICATIONS
Machine condition: very good
Max. working lenght 3500 mm
Max. working width 300 mm
Verticals separators positioned on a horizontal bar for the automatic and simultaneous loading of narrow pieces (ex: parquet or laminates)
SYSTEM AND OPTIONALS OF THE PANEL HANDLING
Motorized transfer conveyor for the introduction of the panels into the production line
Piece feeding through motorized bottom carpet
CONTROL OF THE MACHINE AND ACCESSORIES
Command board installed on an incorporated electrical cabinet to control the machine
NORM AND OPTIONAL FOR THE SECURITY
Security norme CE mark

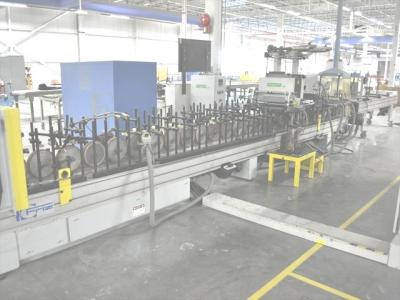

POSITION 2 - TYPE: PROFILE WRAPPING MACHINE - BRAND: FRIZ - MODEL: PU 15/30 PUR/S0
GENERAL SPECIFICATIONS
Industrial machine with heavy-duty structure
Machine condition: very good
Machine lenght 7380 mm
Applicable banding material in coils: thin edge up to 3 mm
Max. working width 10 / 300 mm with straight profiles
Max. working width 10 / 250 mm with SOFTFORMED profiles
SYSTEM AND OPTIONALS OF THE PANEL HANDLING

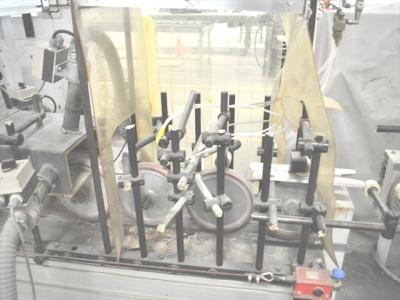

Running driving wheels - total nr. 30 motorized wheels
Top pression unit made by lines of idle wheels
Adjusting in continuos feeding speed 10 / 40 m/min
Input panel guide

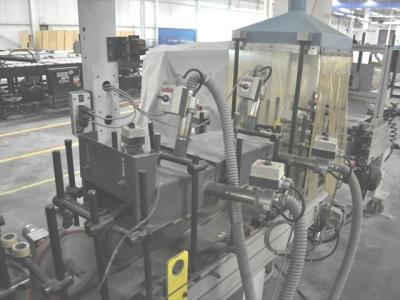

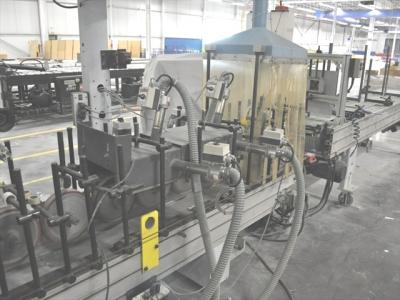

GLUING UNIT, INSERTION AND PRESSION OF THE EDGE
Anti-gluing unit made by guns that spray liquid on the top and lateral part of the panel
Zone to pre-heat the panel - Nr. 2 air Heating units placed on the right side of the machine - Nr. 2 air Heating units placed on the left side of the machine - Nr. 2 air Heating units placed on the top side of the machine
Multiple magazine for edge coils with nr. 2 positions, to automatically change the edge type
Gluing unit for poliuretanic glue and premelter DUSPOHL- CEFLA GROUP "SCS 310" YOC 2008
Spreading roller to regulate the quantity of apllied glue
Edge pression roller for top side
Top blade to cut the excess edge
CONTROL OF THE MACHINE AND ACCESSORIES
Control and program system HOMATIC NC 16 with the following features: - visual display - keyboard
Command board installed on a separated electrical cabinet to control the machine
NORM AND OPTIONAL FOR THE SECURITY
Security norme CE mark
| |
