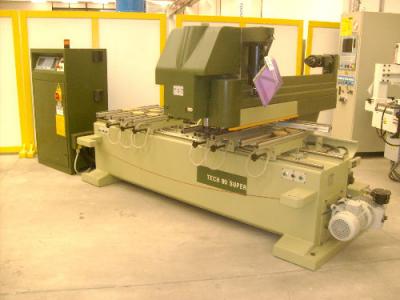

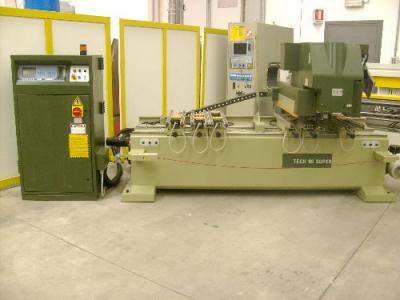

NUMERICAL CONTROL BORING AND ROUTING CENTRE SCM TECH 90 SUPER
Photos
 |
  |
Technical data
| Type: | Woodworking machinery second hand |
| Category: | MACHINING CENTERS |
| Location: | Italy |
| Make: | SCM |
| Model: | TECH 90 SUPER |
| Year: | |
| Quotation: | |
NUMERICAL CONTROL BORING AND ROUTING CENTRE SCM TECH 90 SUPER WORKABLE SIZE WITH VERTICAL ROUTING AND BORING UNIT ( SEE OPERATING FIELD) 2150X800 MM WORKABLE SIZE WITH ALL TOOLS 1840X800 MM MAX STROKE X AXIS 2150 MM - MAX STROKE Y AXIS 900 MM MAX STROKE Z AXIS 100 MM - MAX PANEL THICKNESS 55 MM SPINDLE ROTATION SPEEDS 3000 R.P.M. DISK-TYPE ROUTER SPEED 6000 R.P.M. ROUTING SPINDLE SPEED 16000 R.P.M. MAIN MOTOR 4 HP ROUTING SPINDLE FITTING 2 MK VACUUM PUMP CAPACITY 40 M3/H COMPRESSED AIR PRESSURE 6/7 ATM DIAMETER EXHAUST OUTLET 200 MM NET WEIGHT 1500 KG CODE: ML0006 | |
