BIESSE, "ROVER 30 S2", CNC P.T.P. Machining Center w/ATC, BP-280381
Photos
![Photos #1 - BIESSE, "ROVER 30 S2", CNC P.T.P. Machining Center w/ATC, BP-280381: BIESSE, ROVER 20 S2, CNC, machining center, automatic tool changer, X-Axis, y-axis, z-axis, vertical boring, spindle, horizontal, HSD router, panel, vacuum cups, LCD display](http://www.macchine-legno.com/files/BP-28038101.jpg "Photos #1 - BIESSE, "ROVER 30 S2", CNC P.T.P. Machining Center w/ATC, BP-280381: BIESSE, ROVER 20 S2, CNC, machining center, automatic tool changer, X-Axis, y-axis, z-axis, vertical boring, spindle, horizontal, HSD router, panel, vacuum cups, LCD display") |
![Photos #2 - BIESSE, "ROVER 30 S2", CNC P.T.P. Machining Center w/ATC, BP-280381: BIESSE, ROVER 20 S2, CNC, machining center, automatic tool changer, X-Axis, y-axis, z-axis, vertical boring, spindle, horizontal, HSD router, panel, vacuum cups, LCD display](http://www.macchine-legno.com/files/BP-28038102.jpg "Photos #2 - BIESSE, "ROVER 30 S2", CNC P.T.P. Machining Center w/ATC, BP-280381: BIESSE, ROVER 20 S2, CNC, machining center, automatic tool changer, X-Axis, y-axis, z-axis, vertical boring, spindle, horizontal, HSD router, panel, vacuum cups, LCD display"){kind=small} ![Photos #3 - BIESSE, "ROVER 30 S2", CNC P.T.P. Machining Center w/ATC, BP-280381: BIESSE, ROVER 20 S2, CNC, machining center, automatic tool changer, X-Axis, y-axis, z-axis, vertical boring, spindle, horizontal, HSD router, panel, vacuum cups, LCD display](http://www.macchine-legno.com/files/BP-28038103.jpg "Photos #3 - BIESSE, "ROVER 30 S2", CNC P.T.P. Machining Center w/ATC, BP-280381: BIESSE, ROVER 20 S2, CNC, machining center, automatic tool changer, X-Axis, y-axis, z-axis, vertical boring, spindle, horizontal, HSD router, panel, vacuum cups, LCD display"){kind=small} ![Photos #4 - BIESSE, "ROVER 30 S2", CNC P.T.P. Machining Center w/ATC, BP-280381: BIESSE, ROVER 20 S2, CNC, machining center, automatic tool changer, X-Axis, y-axis, z-axis, vertical boring, spindle, horizontal, HSD router, panel, vacuum cups, LCD display](http://www.macchine-legno.com/files/BP-28038104.jpg "Photos #4 - BIESSE, "ROVER 30 S2", CNC P.T.P. Machining Center w/ATC, BP-280381: BIESSE, ROVER 20 S2, CNC, machining center, automatic tool changer, X-Axis, y-axis, z-axis, vertical boring, spindle, horizontal, HSD router, panel, vacuum cups, LCD display"){kind=small} ![Photos #5 - BIESSE, "ROVER 30 S2", CNC P.T.P. Machining Center w/ATC, BP-280381: BIESSE, ROVER 20 S2, CNC, machining center, automatic tool changer, X-Axis, y-axis, z-axis, vertical boring, spindle, horizontal, HSD router, panel, vacuum cups, LCD display](http://www.macchine-legno.com/files/BP-28038105.jpg "Photos #5 - BIESSE, "ROVER 30 S2", CNC P.T.P. Machining Center w/ATC, BP-280381: BIESSE, ROVER 20 S2, CNC, machining center, automatic tool changer, X-Axis, y-axis, z-axis, vertical boring, spindle, horizontal, HSD router, panel, vacuum cups, LCD display"){kind=small} |
Technische daten
| Typ: | Holzbearbeitungsmaschinen gebrauchte |
| Kategorie: | BEARBEITUNGSZENTRUM - CNC |
| Ort: | Canada |
| Marke: | BIESSE |
| Modell: | "ROVER 30 S2" |
| Jahr: | 1999 |
| Preis €: | |

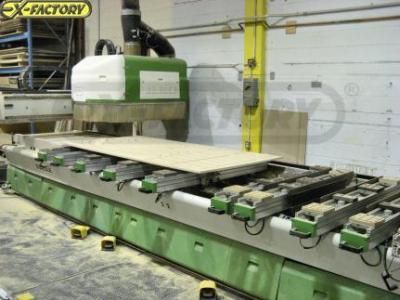

• Working cap.: X-Axis = 135 in. (3,210 mm), Y-axis = 56 in. (1,425 mm) for boring and 64-1/2 in. (1,641 mm) for routing, Z-axis = 7-1/4 in. (185 mm); max. programmable speed: X- and Y-axis - 2,756 IPM and Z-axis - 1,181 IPM.

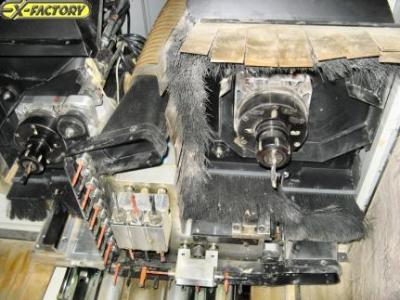

• Equipped with: (20) Independent vertical boring spindles forming a L-configuration with (10) spindles on the Y-axis and (10) spindles on the X-axis; inverter controlled variable spindle speed up to 4,000 RPM.
• A total of (8) horizontal spindles provide horizontal boring capabilities on all four edges of the panel, (6) on the X-axis (3 in ea. direction) and (2) are paralleled with the Y-axis (1 in ea. direction); head is arranged to accommodate (2) operating units.
• Options included: (1) 10.5 HP vertically mounted HSD router, inverter driven 1,000 - 24,000 RPM with max. torque from 12,000 to 24,000 RPM, includes electro-spindle for ISO 30 adapters and equipped with 360 deg. rotation continuous "C-axis" operating unit for various aggregates.

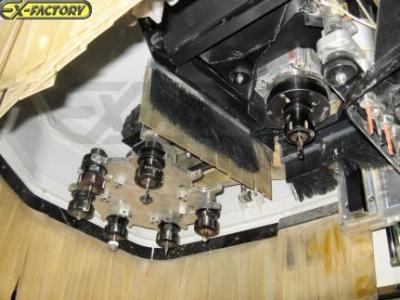

• "Ride Along" Automatic tool changer for "on the fly" tool changes with (7) tool positions, also for Aggregate Tools; includes Horizontal Router aggregate and 2-Spindle Horizontal aggregate w/(2) opposed spindles, all capable of machining 360 deg. with the 360 deg. rotation operating head.

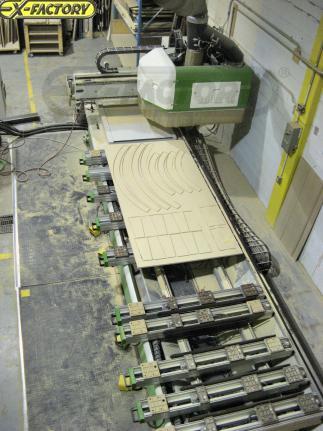

• Work area: (8) Adjustable panel supports ea. with (3) vacuum cups; (8) smaller ones (80 x 160 mm) in the front row for narrow parts and (16) larger ones (160 x 160 mm) in the (2) back rows; each support with metric LCD display for quick positioning of vacuum cups & support rails and with value input from controller according to part size and machining required.
• Setup for (2) independent working areas with double boring stop unit equipped with: (2) Rows of (8) pneumatic backstops, (4) pneumatic side stops and (4) add. central stops; front row & central stops with "quick fit" mushroom clamps for clamping of small or awkward shaped parts; each work zone with: (1) Quick Connect vacuum outlet for custom vacuum fixtures.

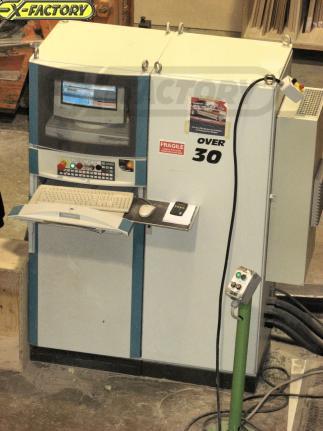

• Separate control console with: "XNC" 32-bit 486DXE-100 MHz processor, 540 MB hard drive, 14 in. color monitor, international keyboard, soft touch keypad & industrial mouse, RS-232 serial port and (1) 1.44 MB floppy disk drive.
• PC operating system for MS-DOS w/Windows 3.1, 3.11 and Windows '95, '98 and NT; comes with: "OPTIX-CAM 3 in. Module and DXF-CID software for CAD/CAM programming on IBM compatible PC, programs can be transferred via diskette or downloaded by wire; built-in 1,500 W air conditioner for constant temperature & dust free environment.
• Includes: 11 KVA Stabilized Auto-Transformer for voltages between 220 - 600 volt, 100 cbm/Hr BECKER vacuum pump and automatic "forced" lubrication system for guides & ball screw.
• Pressure sensitive safety mats that will instantly place machine in "pause cycle" when stepped on; sound absorbing protective head enclosure with debris curtain around bottom edge. - [Ref. BP-280381]
A Great Value for the money!
USD $ 38,500
| |
