WEIMA, "TH 820S", Briquette Press, BL-010075
Photos

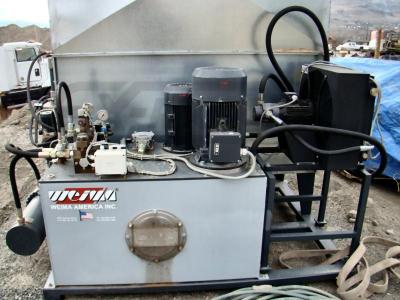

![Photos #1 - WEIMA, "TH 820S", Briquette Press, BL-010075: WEIMA, TH820S, briquette, press, compacted logs, output, vertical hopper, worm channel, hydraulic ram, auger, heater](http://www.macchine-legno.com/files/BL-01007501.jpg "Photos #1 - WEIMA, "TH 820S", Briquette Press, BL-010075: WEIMA, TH820S, briquette, press, compacted logs, output, vertical hopper, worm channel, hydraulic ram, auger, heater") |
![Photos #2 - WEIMA, "TH 820S", Briquette Press, BL-010075: WEIMA, TH820S, briquette, press, compacted logs, output, vertical hopper, worm channel, hydraulic ram, auger, heater](http://www.macchine-legno.com/files/BL-01007502.jpg "Photos #2 - WEIMA, "TH 820S", Briquette Press, BL-010075: WEIMA, TH820S, briquette, press, compacted logs, output, vertical hopper, worm channel, hydraulic ram, auger, heater"){kind=small} |
Technische daten
| Typ: | Holzbearbeitungsmaschinen gebrauchte |
| Kategorie: | BRIKETTIERMASCHINEN |
| Ort: | Canada |
| Marke: | WEIMA |
| Modell: | "TH 820S" |
| Jahr: | 2007 |
| Preis €: | |
• Produces 3 in. (80 mm dia.) compacted logs with an hourly output rate of 331 - 397 Lbs/HR (150 - 180 Kg/HR).
• Vertical Hopper: 79 in. x 79 in. x 38 in. (2000 x 2000 x 960 MM) worm channel with delivery worm and gearmotor; Hydraulic Motor: 20 HP, (15 kW); Hydraulic Oil Quantity: 66 Gal. (250 L); Machine Weight: 3,307 Lbs (1,500 Kg).
• Vertical hydraulic ram compacts the material in the extrusion chamber to produce uniform material, extrusion chamber is continually filled via rotary screw type auger.
• Volume reduction from chip/dust to block up to 10:1 ratio; Equipped with: Centralized control panel for easy operation, MITSUBISHI Logic control & solid German engineering and briquette length control.
• Complete with: Auger, hydraulic oil heater, auto. on/off switch, oil level sensor, reinforced gearbox, prepared for 2nd auger and central lubrication system.
• Note: This hydraulic unit can support two hoppers and press units to double production output. - [Ref. BL-010075]
YMFG - 2007
FOB - Western CDN
Very Good Condition
USD 47,950
| |
