HOLZ-HER, "CUT 85", Front Load, Automatic Panel Saw, PH-011975
Photos
![Photos #1 - HOLZ-HER, "CUT 85", Front Load, Automatic Panel Saw, PH-011975: HOLZ-HER, Cut 85, front load, panel saw, rip cut, scoring, grooving, rear fence, grippers, crosscut, aligner](http://www.macchine-legno.com/files/PH-01197501.jpg "Photos #1 - HOLZ-HER, "CUT 85", Front Load, Automatic Panel Saw, PH-011975: HOLZ-HER, Cut 85, front load, panel saw, rip cut, scoring, grooving, rear fence, grippers, crosscut, aligner") |
![Photos #2 - HOLZ-HER, "CUT 85", Front Load, Automatic Panel Saw, PH-011975: HOLZ-HER, Cut 85, front load, panel saw, rip cut, scoring, grooving, rear fence, grippers, crosscut, aligner](http://www.macchine-legno.com/files/PH-01197503.jpg "Photos #2 - HOLZ-HER, "CUT 85", Front Load, Automatic Panel Saw, PH-011975: HOLZ-HER, Cut 85, front load, panel saw, rip cut, scoring, grooving, rear fence, grippers, crosscut, aligner"){kind=small} ![Photos #3 - HOLZ-HER, "CUT 85", Front Load, Automatic Panel Saw, PH-011975: HOLZ-HER, Cut 85, front load, panel saw, rip cut, scoring, grooving, rear fence, grippers, crosscut, aligner](http://www.macchine-legno.com/files/PH-01197504.jpg "Photos #3 - HOLZ-HER, "CUT 85", Front Load, Automatic Panel Saw, PH-011975: HOLZ-HER, Cut 85, front load, panel saw, rip cut, scoring, grooving, rear fence, grippers, crosscut, aligner"){kind=small} ![Photos #4 - HOLZ-HER, "CUT 85", Front Load, Automatic Panel Saw, PH-011975: HOLZ-HER, Cut 85, front load, panel saw, rip cut, scoring, grooving, rear fence, grippers, crosscut, aligner](http://www.macchine-legno.com/files/PH-01197506.jpg "Photos #4 - HOLZ-HER, "CUT 85", Front Load, Automatic Panel Saw, PH-011975: HOLZ-HER, Cut 85, front load, panel saw, rip cut, scoring, grooving, rear fence, grippers, crosscut, aligner"){kind=small} ![Photos #5 - HOLZ-HER, "CUT 85", Front Load, Automatic Panel Saw, PH-011975: HOLZ-HER, Cut 85, front load, panel saw, rip cut, scoring, grooving, rear fence, grippers, crosscut, aligner](http://www.macchine-legno.com/files/PH-01197507.jpg "Photos #5 - HOLZ-HER, "CUT 85", Front Load, Automatic Panel Saw, PH-011975: HOLZ-HER, Cut 85, front load, panel saw, rip cut, scoring, grooving, rear fence, grippers, crosscut, aligner") |
Technische daten
| Typ: | Holzbearbeitungsmaschinen gebrauchte |
| Kategorie: | DOPPELENDPROFILER |
| Ort: | Canada |
| Marke: | HOLZ-HER |
| Modell: | "CUT 85" |
| Jahr: | 2004 |
| Preis €: | |

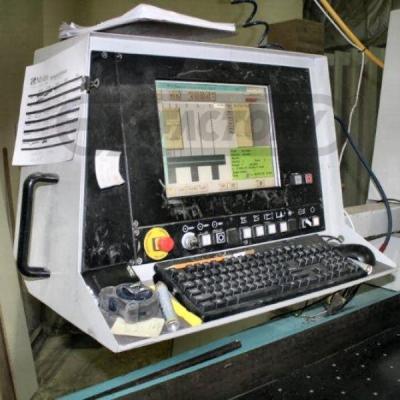

• 126" (3,200 mm) Max. rip cut cap. & 122" (3,100 mm) max. pull back / pusher stroke, 20 HP (15 kW) main & 3 HP (2.2 kW) scoring motor, 3.8" (97 mm) max. saw blade projection. • Saw carriage feed speed from 3 - 324 FPM (1 - 100 MPM), return speed of 324 FPM (100 MPM). • Grooving function with (2) cutting height settings, automatic cutting length limiter adjusts the cutting length at the end of the workpiece, automatic saw carriage lubrication. • Programmable rear fence with (6) material grippers, rack & pinion movement on both sides to assure the pusher remains parallel, roller rear support tables, 81 FPM (25 MPM) forward positioning speed, and 259 FPM (80 MPM) return positioned speed. • PC Front-end controller, 15" TFT display with: Unlimited program storage via floppy disk, keypad for data entry, USB & RS-232 serial port, CD ROM & disk drive for additional storage of programs. • Features diagnostic for errors or machine malfunction by means of an error signal code, incremental or absolute programming in mm or inches. • Complete with: Crosscut side aligner & automatic saw blade height adjustment; (3) air support tables 78" x 24" (1,981 x 609 mm). • Options Include: Optimizing software & Cub label printer. • NOTE: EX-Factory, Inc offers "no" assistance for 3rd party software related issues. Any software re-licensing or related issues are at the sole responsibility of the seller & buyer to resolve. – [Ref. PH-011975]
MOTIVATED SELLER SAYS "Make me a reasonable offer"...Seller States "Saw is in EXCELLENT condition & ready for its new home"!
YMFG - 2004 FOB – Eastern Canada Excellent Condition USD $27,900 | |
