Balestrini Mini C Linear Shaper Stock # 12588
Verze pro tiskPhotos
 |
  |
Technické údaje
| Typ: | Použité dřevoobráběcí stroje |
| Kategorie: | FRÉZY |
| Místo: | United Kingdom |
| Značka: | Balestrini |
| model: | Mini C 2500 |
| Rok: | 1998 |
| Citace €: | |

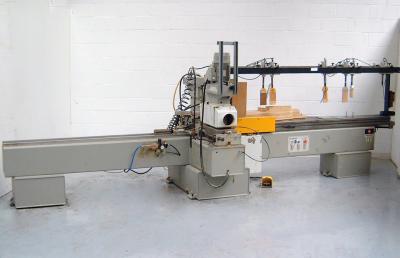

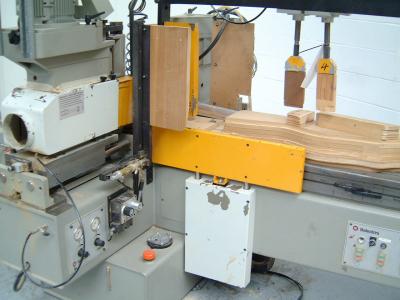

This double sided template shaper is designed to accurately machine two sides of a workpiece by following and copying a template mounted on the machine bed. Your workpiece to be machined is clamped on top of the template. The workpiece and template are clamped to the machine bed which is powered hydraulically moving the workpiece past the cutter heads. The two powerful cutter head motors are pneumatically operated with adjustable pressure.
Both cutter heads can be angled to suit the movement of the table designed for performing rounding operations on workpiece ends and complex shapes with undercuts.

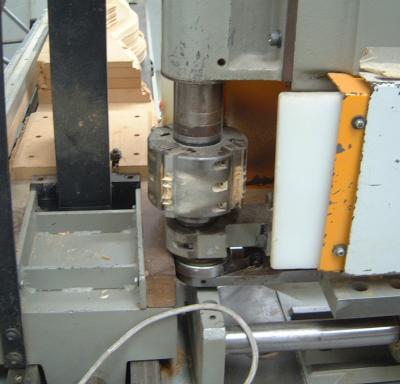

Sturdy heavy duty spindles capable of accepting various cutter heads with easy and quick changover.
Fully guarded cutter heads,
Workpiece clamps
Fitted with the optional 10hp motors
Hydraulic pump with built in motor
Technical Specification:
Model MINI/C 2500
Serial number N438CD4
Year of manufacture 1998 CE
Maximum working length 2500mm
Maximum working height 180mm
Max working width 450mm
Spindle diameter 35mm
Max cutting circle 160mm
Max cutterblock height 180mm
Spindle speeds 8400rpm
Speed of carriage 1 to 15 mt/min
Return speed of carriage 60 mt/min
Motor powers 10hp
Hydraulic pump motor 4hp
Machine dimesions 6300x2050x1800mm
Maxchine weight 2150kgs
| |
