Hess Centromac Assembly Cramp Stock # 12265
Verze pro tiskPhotos
 |
  |
Technické údaje
| Typ: | Použité dřevoobráběcí stroje |
| Kategorie: | KORPUSOVÉ LISY |
| Místo: | United Kingdom |
| Značka: | Hess |
| model: | Centrolux |
| Rok: | 1989 |
| Citace €: | |

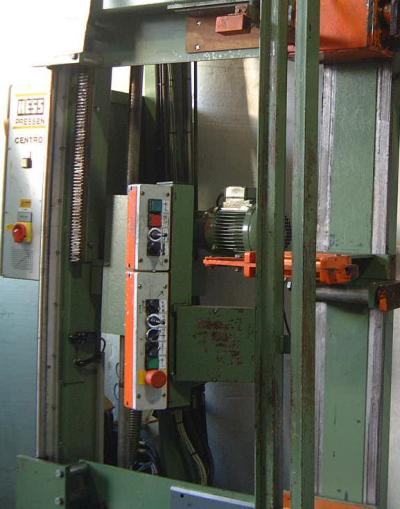

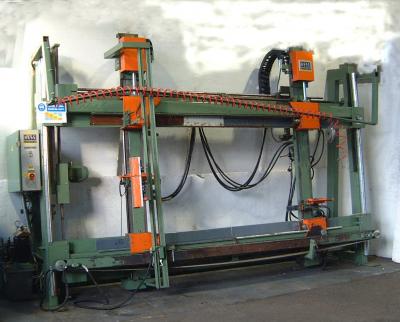

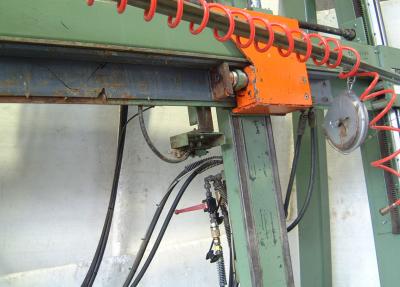

Hydraulic operated press for wooden frames. Both vertical and horizontal beams are adjustable to suit the frame size. Beams are electrically powered and controlled from the control panel. Technical Specification:
Model Centro-lux
Serial number C0061
Voltage 400v
Max frame size accepted 2550x1650mm
Vertical stroke of cylinders 200mm
Horizontal stroke of cylinder 80mm
Pressure capacity of cylinders 1800n(1800kp) at 100 bar
Hydraulic pump motor 2hp
Total power requirement 3.7kw
Air supply 0-6bar
Overal machine size 4600x1300x2800mm
Machine has been worked on since photographed and is offered fully cleaned checked serviced and tested
| |
